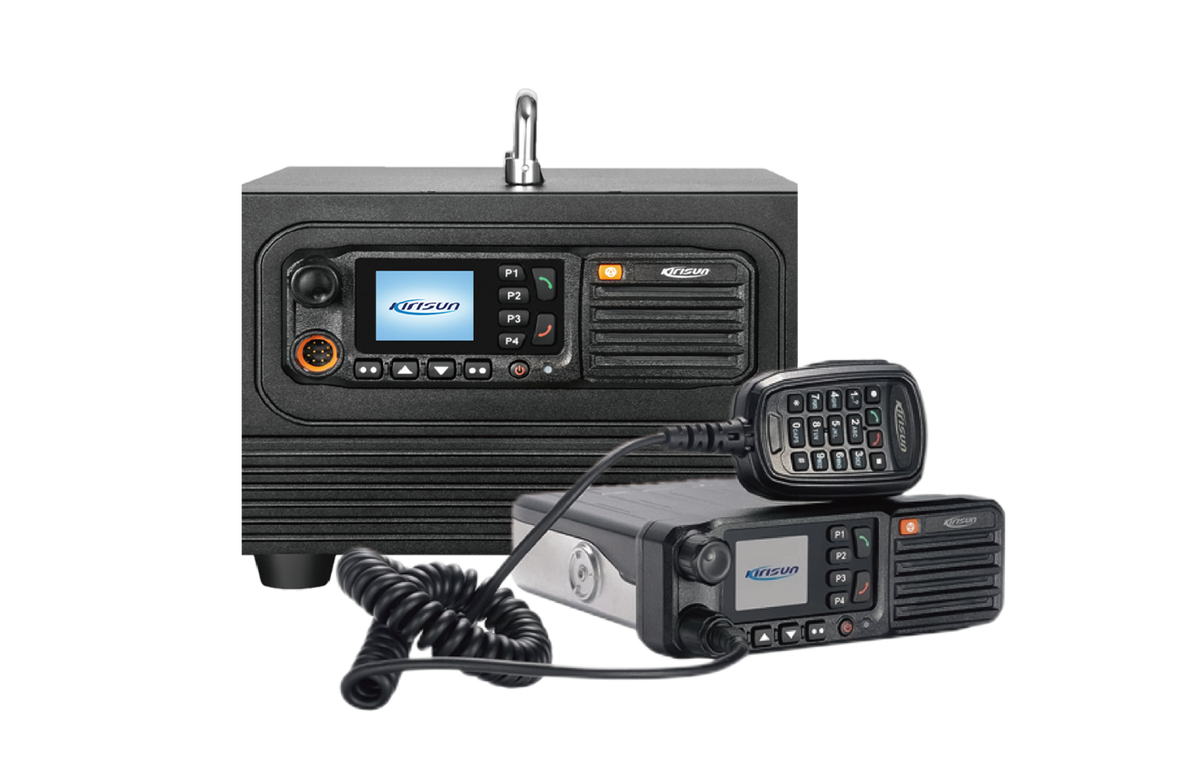

TM840-GWP Smart Gateway

TM840-GWP Smart Gateway

TM840-GWP Smart Gateway is a new generation gateway for PoC & DMR interoperability. The key features include PTT voice call, unified positioning & dispatching, voice recording, messaging dispatching, and SOS alarm management.

Nationwide PTT service
Over 4G/3G/2G and WLAN networks, users can communicate nationwide. And it is also able to communicate with DMR/Analog radios.
Intuitive Call Information Display
The screen of TM840-GWP intuitively displays call information, such as caller, PoC group, DMR group, and call duration.
Unified Positioning and Dispatching
Both of PoC and DMR radios' locations can be present on the Dispatcher map, which makes it is easy dispatch across the mixed fleet radio of PoC and DMR.
Unified Voice Recording
Both of PoC and DMR voice calls are recorded by the unified PoC Dispatch Console.
Multi-mode Communication
The Smart Gateway TM840-GWP supports flexible communication network modes, for example, PoC network only, DMR network only, PoC + DMR mixed network.
Specification
DMR/Analog

Frequency Range
VHF:136-174MHz;
UHF:400-470MHz;
Format
Analog/DMR
Operation Mode
Direct Mode/Repeater
Transmitting Power
1-10W
Sensitivity
-120dBm
PoC

Communications Mode & Frequency Band
Asia/Europe
GSM:Band2/3/5/8
WCDMA:Band1/2/5/8
TDD-LTE:Band38/40
FDD-LTE:Band1/2/3/5/7/8/20/28
America
GSM:Band2/8
WCDMA:Band1/2/4/5/8
FDD-LTE:Band2/4/5/7/12/13/17/25/26
RAM+ROM
512MB+4GB
Wi-Fi
2.4GHz
General

Dimensions
176x59x183mm
Weight
≤1380g
Operating Temperature
-20℃ + 55℃
Storage Temperature
-40℃ + 85℃
