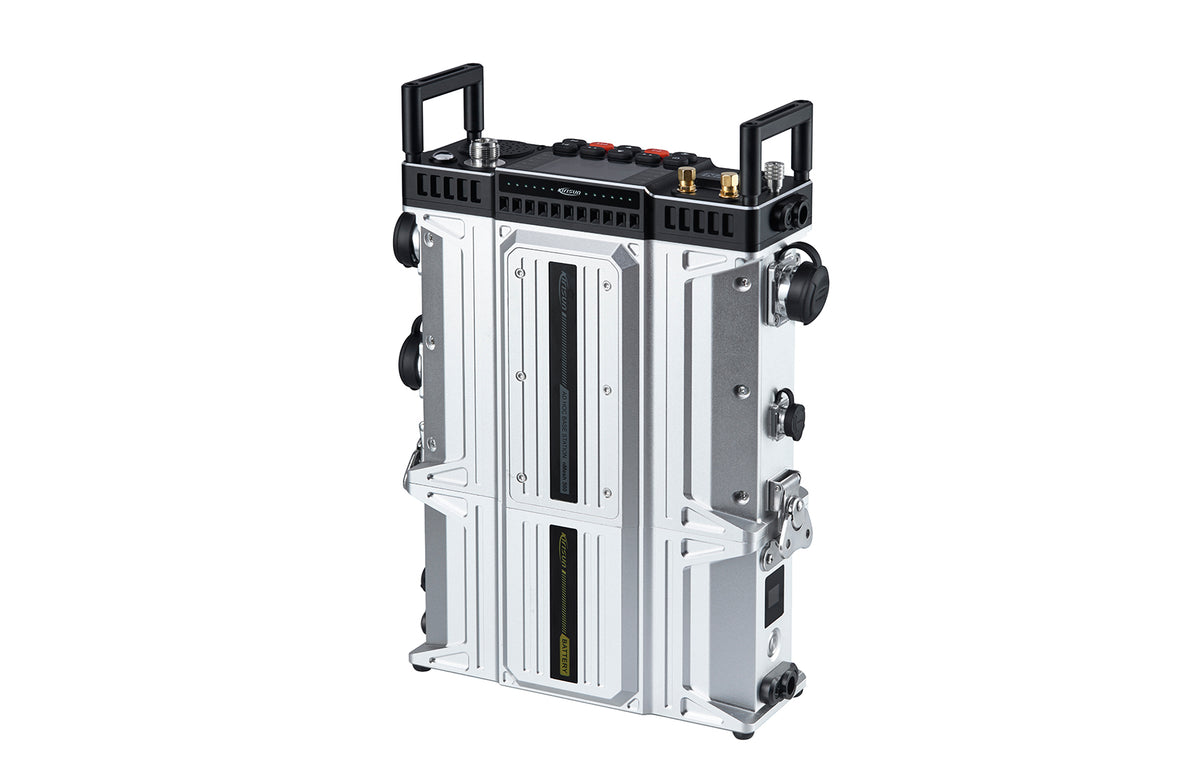

nMesh500 Backpack Ad-hoc Repeater

nMesh500 Backpack Ad-hoc Repeater

Kirisun nMesh500 highly integrated backpack ad-hoc repeater uses wireless interconnection technology to quickly build a multi-hop narrowband network through cascading. It is mainly used in various fast deployment scenarios such as natural disasters, tunnel communications, public safety, and forestry inspections.

Fast Deployment
The nMesh500 supports one-button startup.It is capable of creating and joining networks to deploy the communication system as soon as it is powered on.
Advanced Encryption
The nMesh500 provides advanced encryption capability to ensure secure communication for voice call and data transfer between team members.
Easy to Operate
The nMesh500 is equipped with PTT button, microphone, speaker, hand microphoneinterface, can realize instant communication between repeaters.
High-Capacity and Friendly Design Battery
The nMesh500 is built-in 210WH large-capacity battery, provides longer standby and working time. Equipped with intelligent battery display, emergency low battery alarm prompt.
Flexible Topology Networking
The nMesh500 supports versatile network links, including wireless link, 4G/5G link and satellite link, providing flexible network deployment based on the field environment.
Wireless Programming
The nMesh500 can be programmed by a network management system via Wi-Fi, which eliminates the hassle of programming via cables and minimizes downtime on site.
Automatic Multi-node Networking
The nMesh500 supports up to 32 nodes to form chain, mesh or hybrid networks, which can effectively extend the communication coverage.
Specification
General

Frequency Range
136-174 MHz,350-400 MHz,400-470 MHz
Channel Capacty
1024
Protocol
DMR Tierll
Channel Spacing
12.5 kHz
Networking Capacity
32 nodes
Vocoder Type
AMBE++
Operating Voltage
DC 10 - 17 V
Adapter Input Voltage
100V-240V AC 50Hz
Battery Capacity
210WH
Operating Temperature
-30℃ to +60℃
Storage Temperature
-40℃ to +85℃
Dimensions (LxWxH )
225 x 82.5 x 331mm
Weight (with battery)
4.5 kg
Display
2.4 inch
Antenna Impedance
50Ω
Dust & Water Intrusion
IP68
Receiver

Sensitivity
≤-120dBm，BER@5%
Transmitter

RF Output Power
10W/25W/45W(Adjustable)
