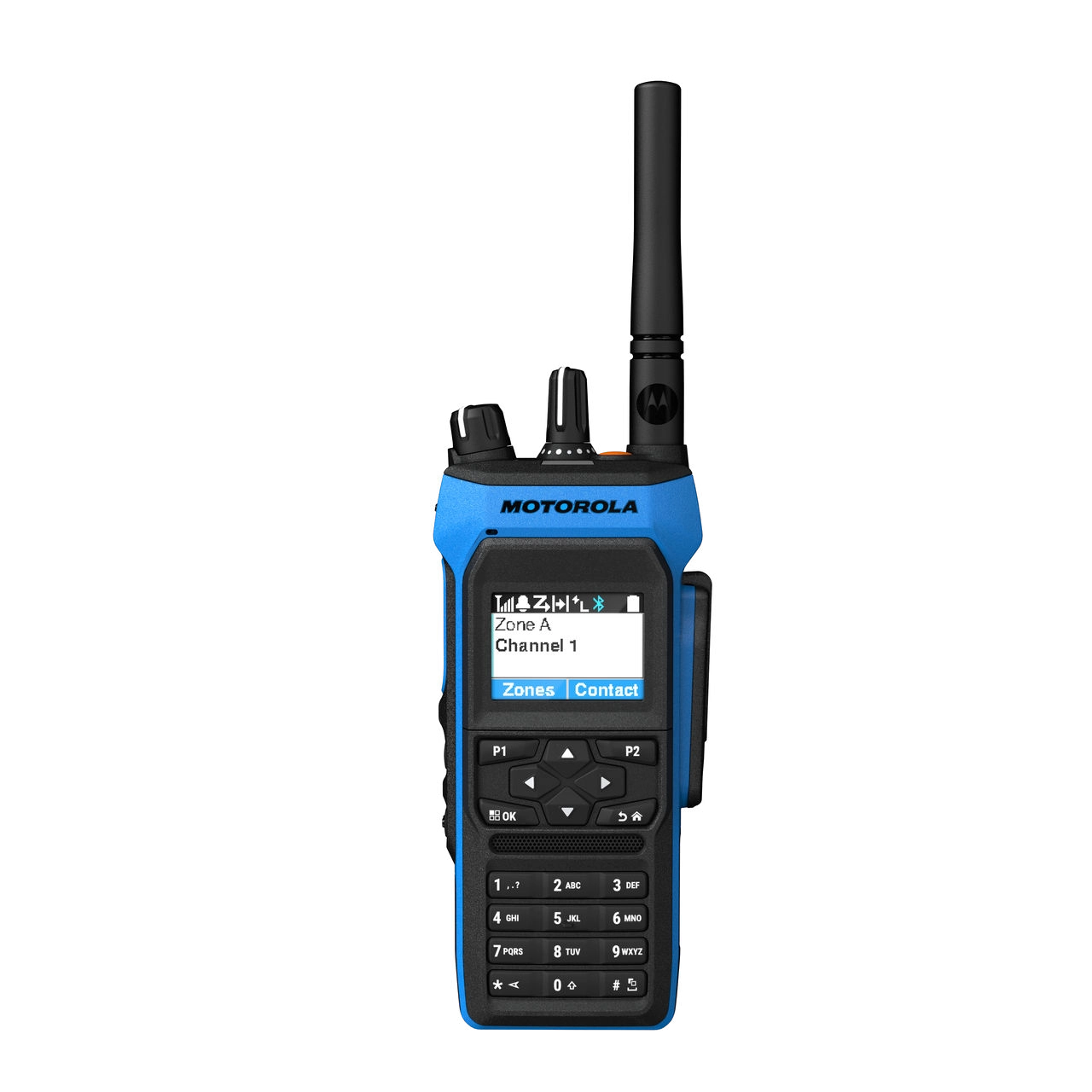

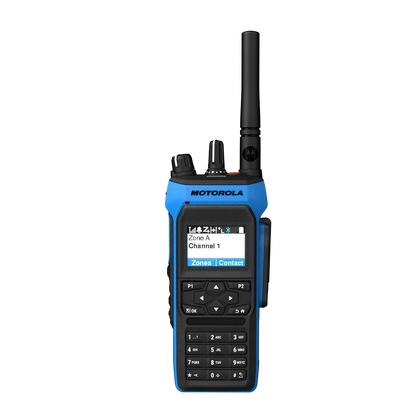

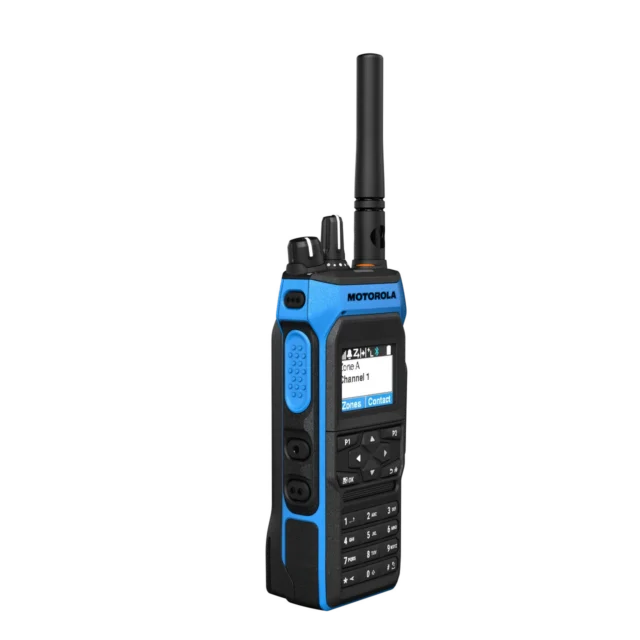

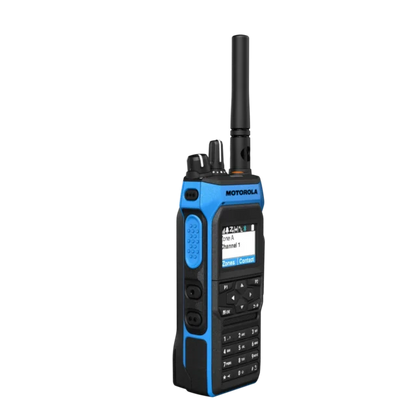

Motorola MOTOTRBO™ R7Ex FKP ATEX Digital Two-Way Radio (Full Keypad)
Motorola MOTOTRBO™ R7Ex FKP ATEX Digital Two-Way Radio (Full Keypad)
The Motorola Solutions MOTOTRBO™ R7Ex ATEX and IECEx Certified Full Keypad (FKP) portable two-way radios deliver high-quality communication, enabling teams to work safely in hazardous environments. With loud, clear audio and advanced features, the Motorola Solutions R7Ex FKP ensures that workers can hear calls and share messages effectively, boosting performance and productivity while reducing downtime.
Integrate with your ecosystem
As part of the Motorola Solutions ecosystem, the MOTOTRBO™ R7Ex FKP enhances your communication capabilities. Stay informed with automatic notifications from your video security and access control systems directly on your device. Streamline critical communications by controlling instant voice interactions from your desktop using innovative computer-aided dispatch solutions. Extend your communications beyond traditional radio networks with flexible broadband push-to-talk options.
Elevate your team’s performance and safety with the MOTOTRBO™ R7Ex FKP – where advanced technology meets reliable communication for demanding environments.
FKP Gas Group Model:
- Gas group IIA
- Gas group IIC
Motorola Solutions R7Ex Features
- UHF and 350 MHz
- Digital and analogue signalling
- 1.7” 132 x 90 px. display (1)
- Wi-Fi 2.4/5.0 GHz (1)
- WPA3 Wi-Fi security protocol compliant (1)
- Bluetooth® Core Version 5.21
- GNSS location tracking
- Modern, intuitive user experience
- Full suite of accessories, tested with the radio to ensure ATEX/IECEx certification for the full solution
- Sleek and ergonomic form factor
- Automatic acoustic feedback suppression
- AI-trained Noise Suppression
- Single microphone noise cancellation (SINC+)
- Intelligent Audio
- IMPRES™ technology
- Programmable loudness up to 108 phons
- Dual click volume knob controls on/off/volume and Volume Boost
- Simple audio configuration
- 6 (FKP)/4 (NKP) programmable buttons (2)
- Up to 19 hours (IIA) or 23.5 hours (IIC) of battery life (3)
- IP68 waterproof up to 2 metres for 2 hours per ATEX/IECEx specifications (4)
- IP66 (concentrated water jet pressure) per ATEX/IECEx specifications (4)
- ATEX, IECEx and maritime regulations certified
- Disinfectant and decontamination substance resistant housing (5)
- Rugged to MIL-STD 810
Motorola Solutions R7Ex FKP General Specification
| R7Ex (GAS GROUP IIA) FULL KEYPAD (FKP) MODEL | |
|---|---|
| Frequency | 350 - 470 MHz |
| RF power output | 4 W / 1W |
| Channel spacing | 12.5 kHz, 20 kHz, 25 kHz |
| Channel capacity | 1000 |
| Zone capacity | 250 |
| Display | 1.7” (132 x 90 px) colour display with 5 lines of text |
| Power supply (nominal) | 7.4 V |
| Dimensions (h x w x d) | 140 x 57 x 40 mm |
| Weight with battery Excluding antenna Including whip antenna (7) |
438 g 460 g |
| Battery life (3) digital / analogue | 19 / 14.5 hours (23 / 20 hours at 1 W) |
| Gas rating | ATEX: II 2G Ex ib IIA T4 Gb IECEx: Ex ib IIA T4 Gb |
| Dust rating | ATEX: II 2D Ex ib IIIC T130°C Db IECEx: Ex ib IIIC T130°C Db |
| Mining rating | ATEX: I M2 Ex ib I Mb IECEx: Ex ib I Mb |
| Ambient temperature | -30 °C to +60 °C |
| ATEX/IECEx Ingress Protection (IP) rating (4) | IP66, IP68 (2 metres for 2 hours) |
(1) Full keypad models only.
(2) Including emergency button which can alternatively be programmed for other functions.
(3) Typical battery life, 5/5/90 profile at maximum transmitter power with GNSS, Bluetooth and Wi-Fi disabled. Actual observed runtimes may vary.
(4) R7Ex also meets IP64, IP65 and IP67.
| R7Ex (GAS GROUP IIC) FULL KEYPAD (FKP) MODEL | |
|---|---|
| Frequency | 400 - 470 MHz |
| RF power output | 2 W (6) / 1 W |
| Channel spacing | 12.5 kHz, 20 kHz, 25 kHz |
| Channel capacity | 1000 |
| Zone capacity | 250 |
| Display | 1.7” (132 x 90 px) colour display with 5 lines of text |
| Power supply (nominal) | 7.4 V |
| Dimensions (h x w x d) | 140 x 57 x 40 mm |
| Weight with battery Excluding antenna Including whip antenna (7) |
438 g 460 g |
| Battery life (3) digital / analogue | 23.5 / 20.5 hours (24.5 / 22 hours at 1 W) |
| Gas rating | ATEX: II 2G Ex ib IIC T4 Gb IECEx: Ex ib IIC T4 Gb |
| Dust rating | ATEX: II 2D Ex ib IIIC T130°C Db IECEx: Ex ib IIIC T130°C Db |
| Mining rating | ATEX: I M2 Ex ib I Mb IECEx: Ex ib I Mb |
| Ambient temperature | -30 °C to +60 °C |
| ATEX/IECEx Ingress Protection (IP) rating (4) | IP66, IP68 (2 metres for 2 hours) |
(5) Please refer to the MOTOTRBO R7Ex user manual for a list of approved disinfectants and decontamination substances.
(6) Max 2 W allowed per ATEX/IECEx Standards.
(7) Weight including whip antenna PMAD4139 or PMAE4079.
