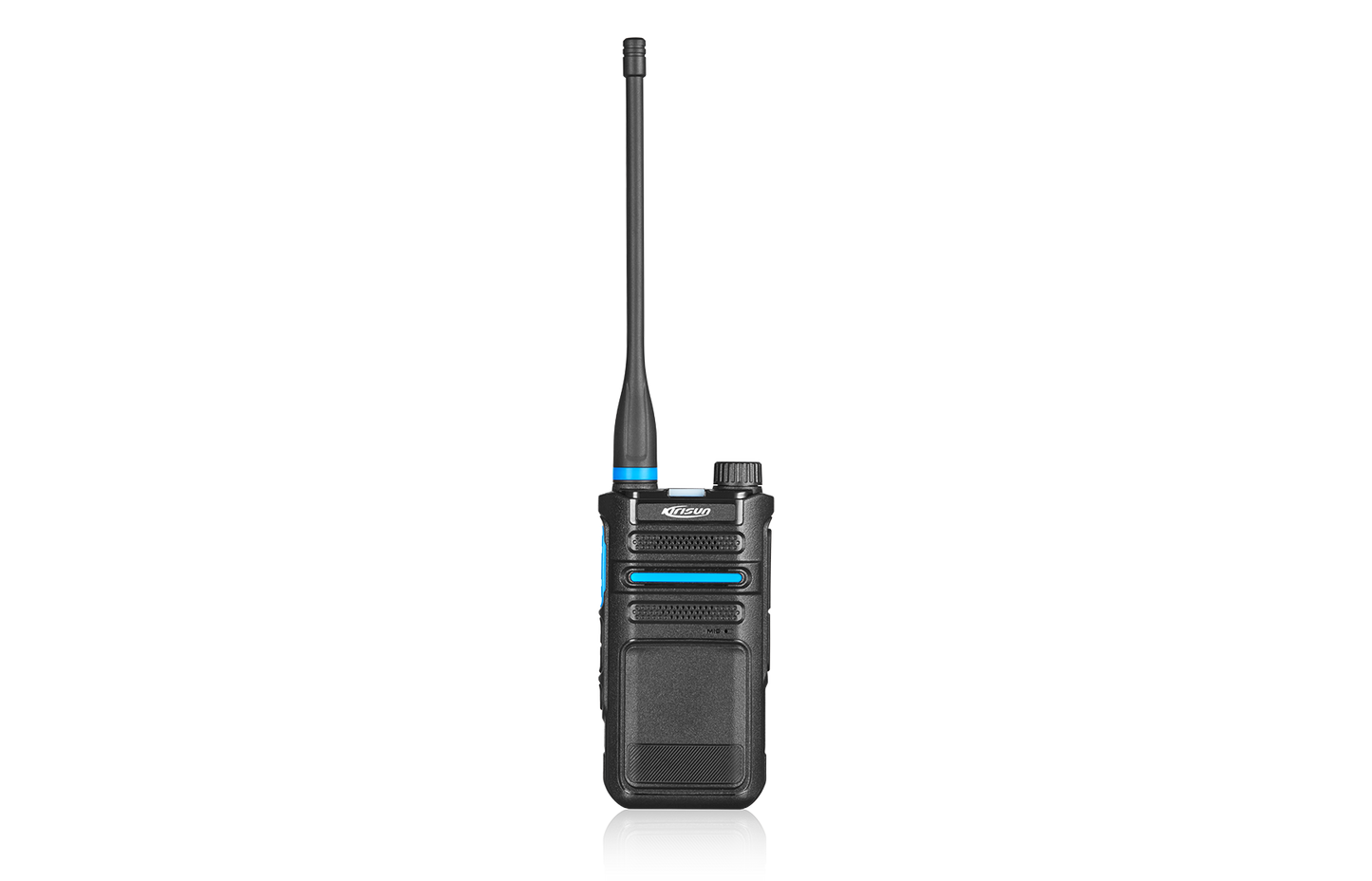

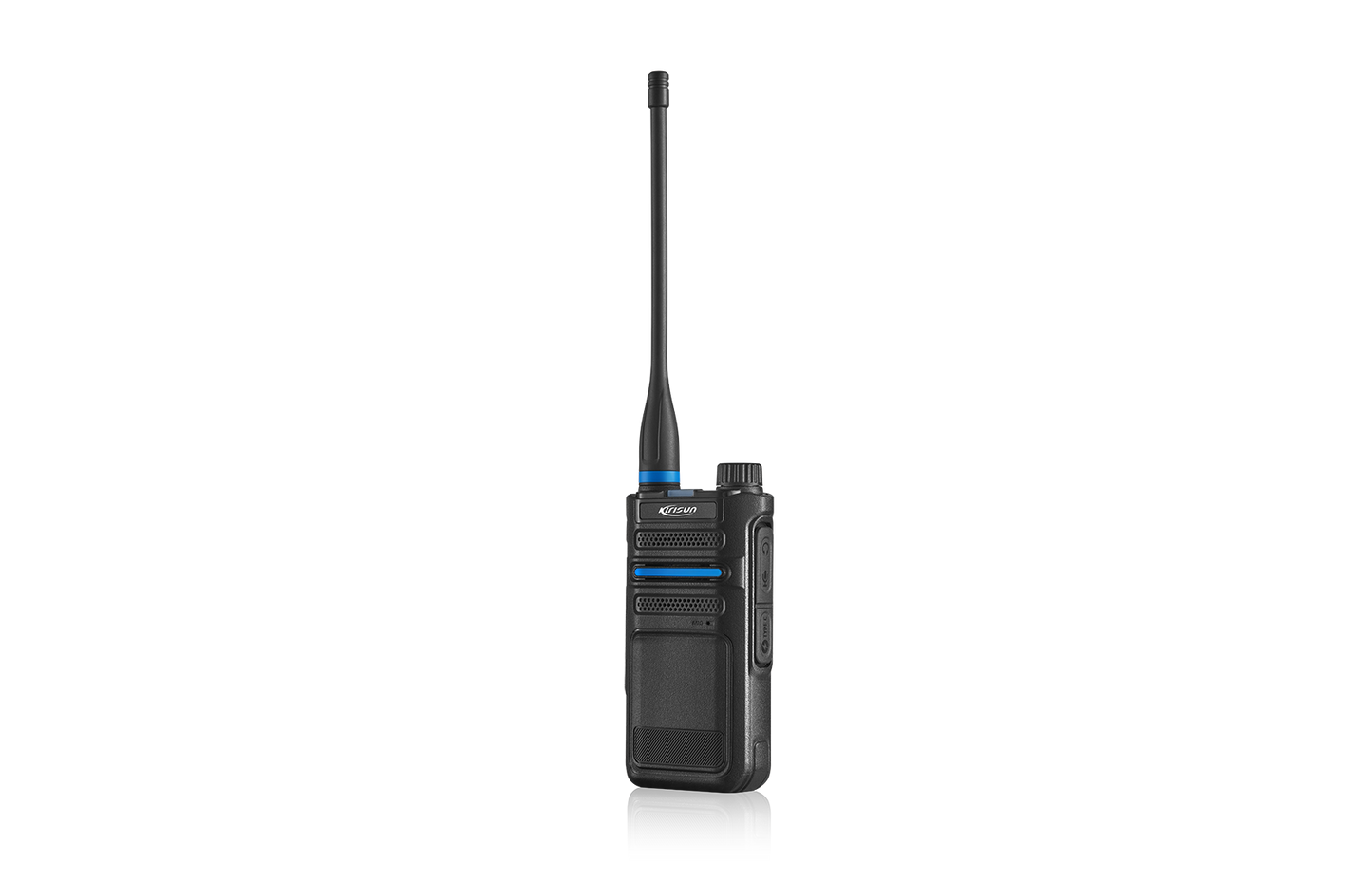

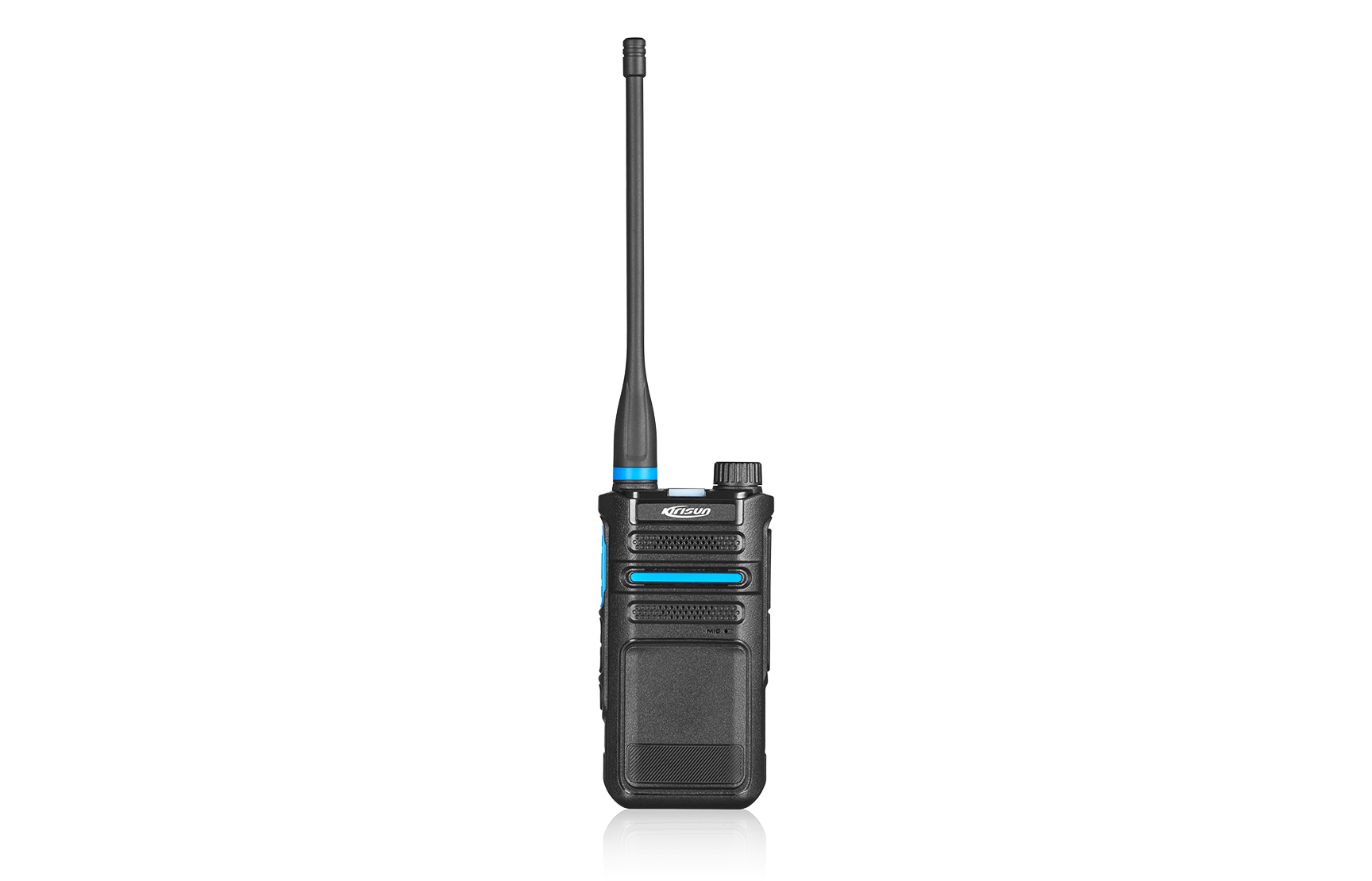

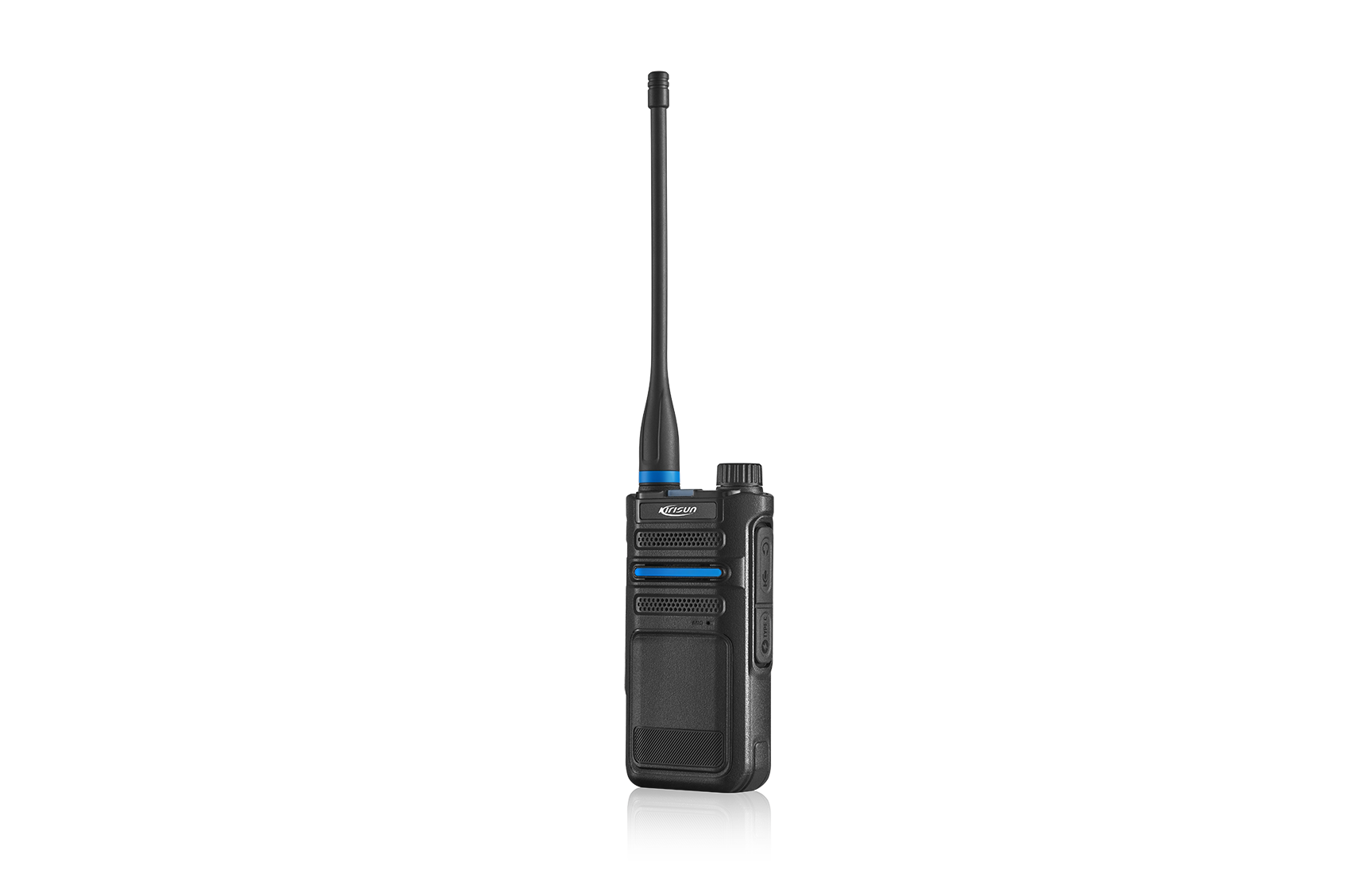

kirisun PT570 Business Analog Two-way Radio

Name: kirisun PT570 Business Analog Two-way Radio
Brand: kirisun
Availability: InStock

A new generation of business radios, the entry level PT570 is compact, lightweight, and deliver loud and clear audio that allows you to hear and be heard in background noise. The PT570 is designed to offer reliable communication while remaining cost-effective, making it suitable for various business applications.

Easy to Operate

The frosted texture and anti slip shell design make it easy for users to operate with one hand.

Type-C USB Charging

Using Type-C USB charging allows you to charge the radio anywhere.And it only takes 3 hours to fully charge, saying goodbye to long charging time.

Voice Announcement

Support voice broadcast of the working status of the radio.

Transmission Time-limited

Transmission time-limited protection to avoid damaging the machine for too long continuous transmission, thereby extending the service life of the machine.

Specification

General

Frequency Range

UHF: 400-470MHZ

Channel Capacity

Channel Spacing

12.5kHz/25kHz

Operating Voltage

7.5V DC+20%

Operating Temperature

-20°C~+60°C

Battery Capacity

1400mAh

Dimension H*W*D(mm)

116*60*34mm

Weight (with batteryand antenna)

≤216g

Battery Life (5-5-90 Duty Cycle)

10 Hours

Frequency Stability

±1.5ppm

Transmitter

Power Output

FM Hum and Noise

≥40dB@12.5kHz; ≥45dB@25kHz

Frequency Deviation

≤5kHz@25kHz; ≤2.5kHz@12.5kHz

Audio Distortion

≤3%

Audio Response

+1~-3dB

Receiver

Sensitivity

-121dBm

Intermodulation

≥65dB@12.5/20/25kHz

Adjacent Channel Selectivity

≥60dB@12.5kHz;≥70dB@25kHz

Max. Audio Power

Rated Audio Power

≤3%

Hum and Noise

≥40dB@12.5kHz; ≥45dB@25kHz

Conducted Spurious Emission

＜-57dBm
