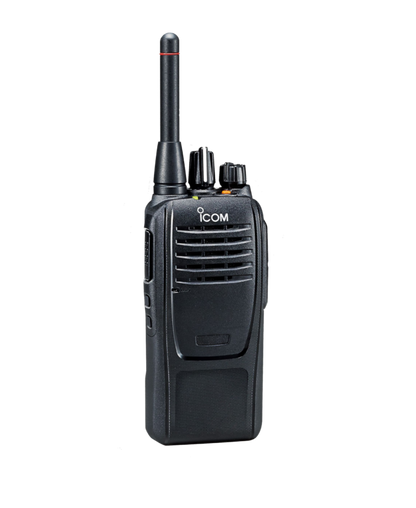

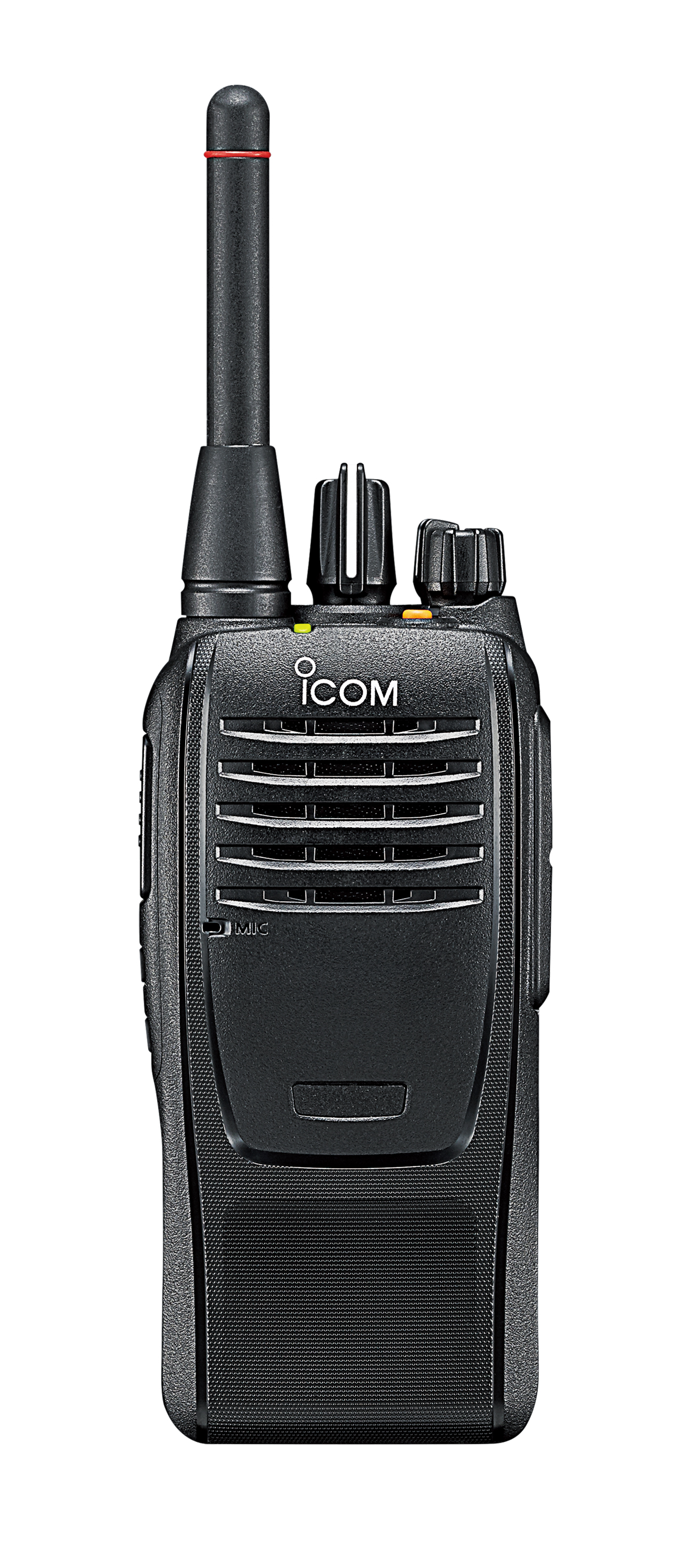

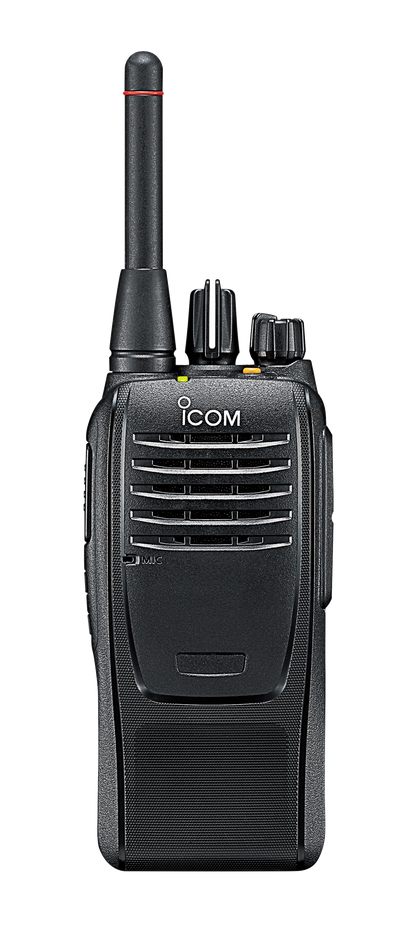

The Icom IC-F29DR3 is the latest in a long line of bestselling licence-free PMR446 radios from Icom. Aimed primarily at the professional user, this radio can operate as well as scan in both analogue and digital modes at the same time. This allows an organisation to operate analogue and digital PMR446 radios in their fleet. It also offers a higher degree of digital encryption as well as digitally enhanced audio quality.
The IC-F29DR3 is virtually identical to its predecessor regarding features, ease of use and performance. It provides a great licence-free solution for those businesses and organisations that want short-range communications.
The Icom IC-F29DR3 offers excellent performance and long battery life of up to 26 hours offering flexibility for a wide range of industry and business sectors. The radios are also IP67 waterproof and dustproof rated so they are robust enough to be used outdoors. This new series also has a lone worker function, an essential requirement for Health & Safety. A wide range of accessories is available for this radio, including VOX headsets for hands-free operation.
Compact waterproof digital transceiver
for Professional Users
Digital and Analogue Dual Mode
The IC-F29DR3 can be used in both digital (32 ch) and analogue (16 ch) mode at the same time and can scan both zones at once. This allows an organisation to operate both digital and analogue radios in their fleets.
IP67 Waterproof and Dust-tight
The IC-F29DR3 can withstand 1 m depth of water for 30 minutes. This rugged construction provides dust-tight protection making it suitable for outdoor use.
Class Leading 1500mW Powerful Audio Output
The newly designed internal speaker provides louder and clearer audio, allowing you to get your message across even in noisy environments. Optional HM-222HLWP can supply 1500 mW loud audio as an external speaker.
Group Call Communication
Similar to analogue CTCSS and DTCS codes, the digital Common ID can be also used for a group call. These codes and ID can be programmed to the 16 position rotary selector for instant call capability.
VOX for Hands-free Operation
With either optional headset* HS-94LWP or HS-95LWP, the built-in VOX function provides convenient hands-free operation. The HS-94LWP/HS-95LWP has a waterproof connector. *HS-94 and HS-95 also can be used with OPC-2004LA.
Voice Announcement Function
When you rotate the rotary selector, the radio announces the selected channel number. The radio also announces the zone number and mode when the zone button is pushed.
12 Types of Ring Tone
The Call-Ring function allows you to call your group members with 12 types of ring tone. When you prearrange any ring tone for an emergency, the ring tone can be used for an emergency alert.
Other Features
26 hours operating time with supplied BP-280, Lone Worker Function, AquaQuake™, Channel Set Mode, Power ON scan, Tone scan (analogue), Nuisance delete, Answer back call (analogue), LED light indicator, Status Call (RX only), PC programmable, AMBE+2™ dPMR™ standard vocoder
| Icom IC-F29DR3 Specifications | |
|---|---|
| Usable channels | 16 ch (PMR 446) 32 ch (dPMR™ 446) |
| Output power | 500 mW (ERP) |
| Audio output power: (at 5% distortion) | Internal speaker 1500 mW typical (with 8 Ω load) External speaker 400 mW typical (with 8Ω load) / 1500 mW typical (with 8Ω load) with HM-222HLWP |
| Dimensions: |
2.2 (W) × 111.8 (H) × 29.4 (D) mm (with BP-280) |
| Weight | 270 g (with MB-133, BP-280) |
| Communication range* | Approximately 11km (In wide open space) |
| Operating temperature | –25˚C to + 55˚C |
| IP rating | IP67 (Dust-tight and waterproof protection) |
| Military standard | MIL-STD-810-G |
