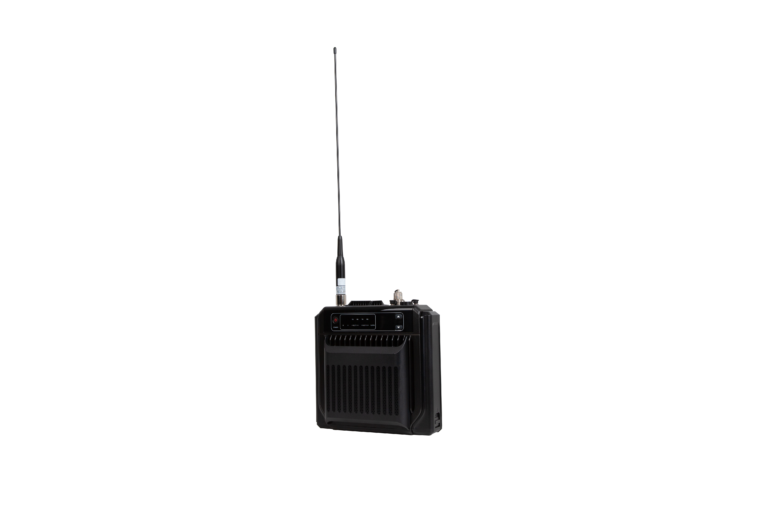

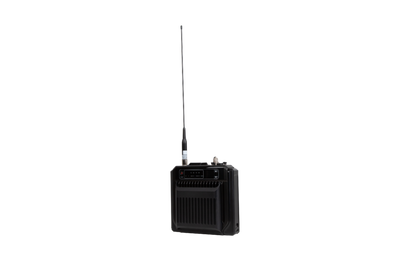

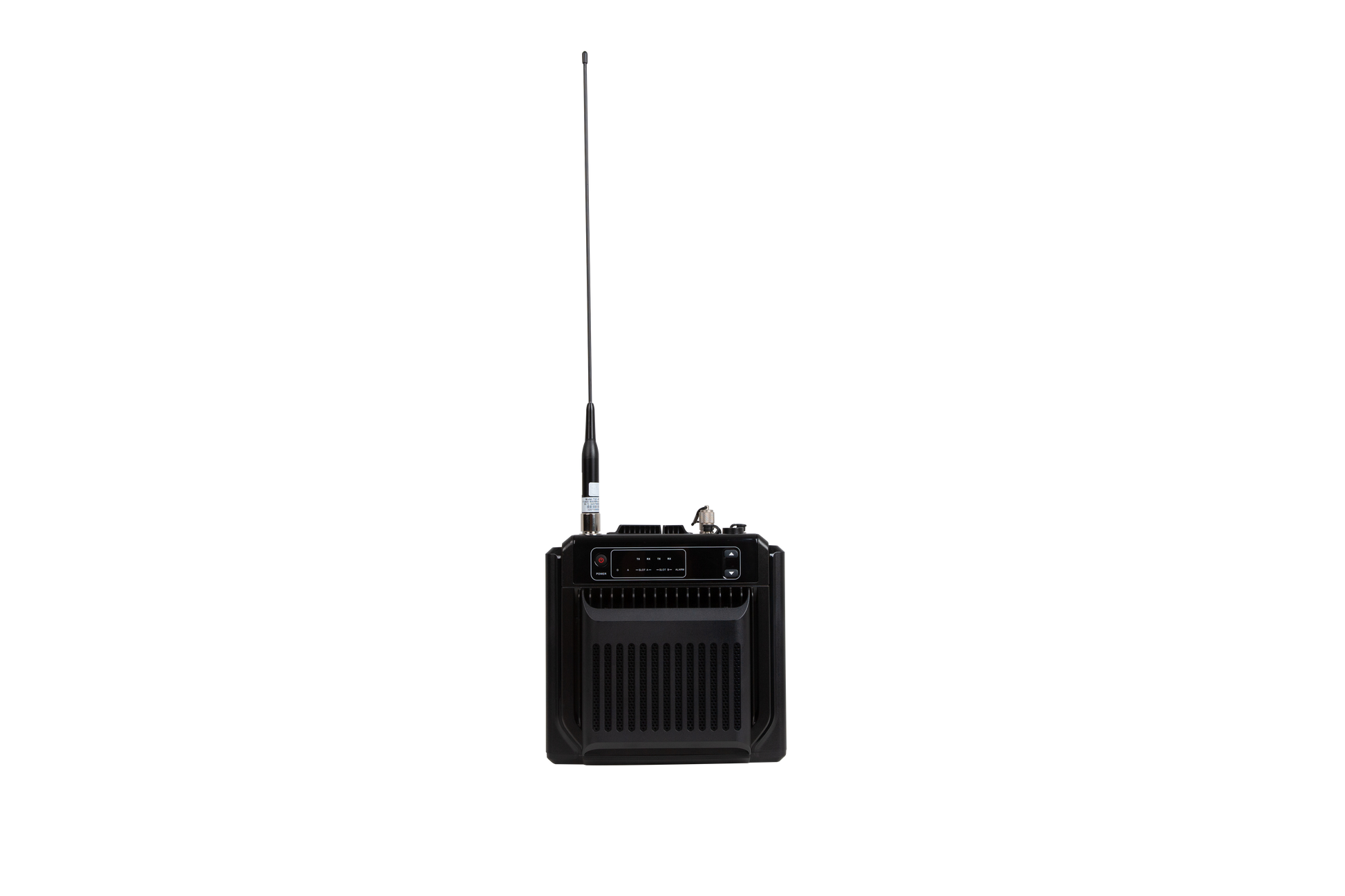

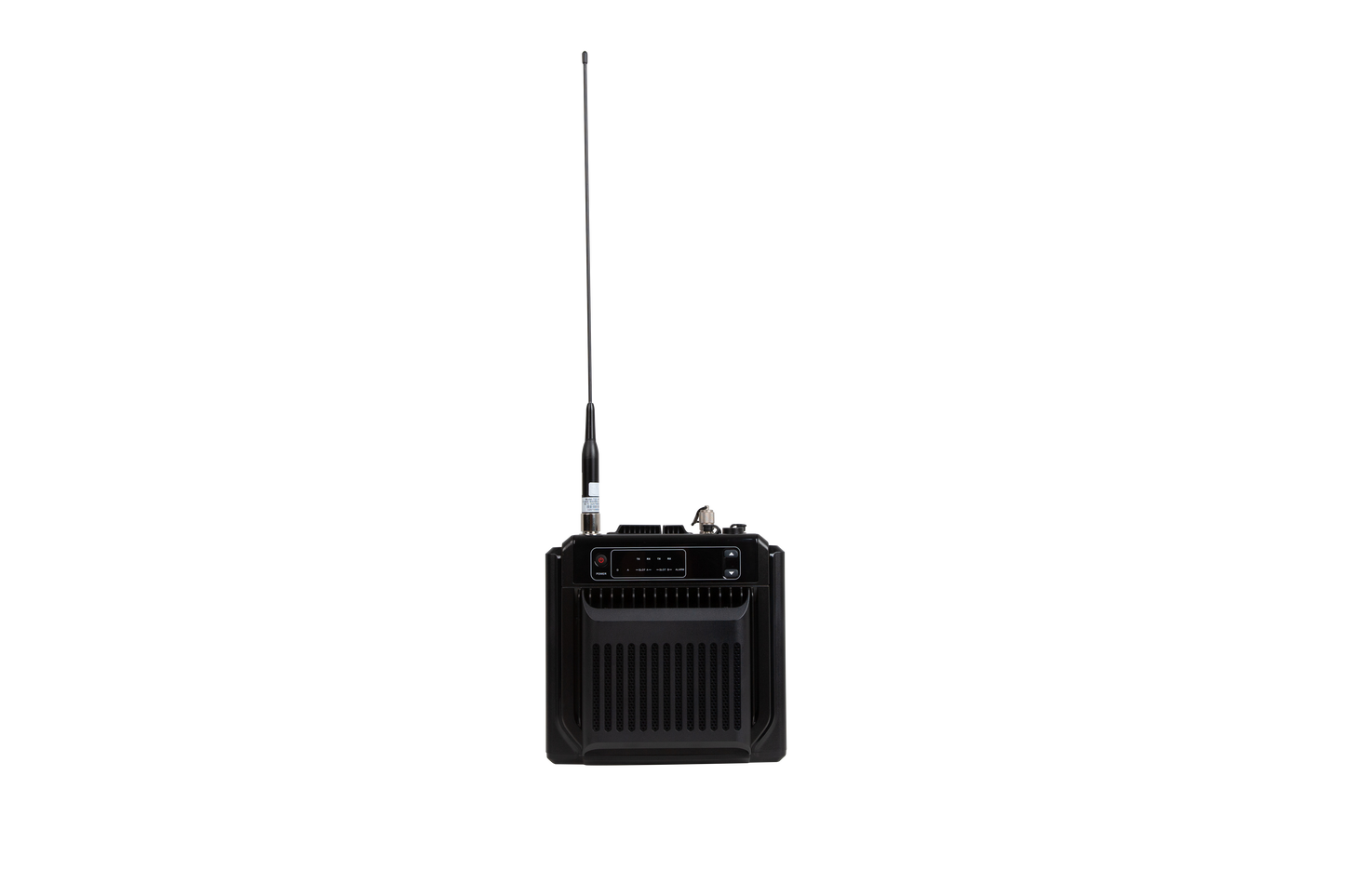

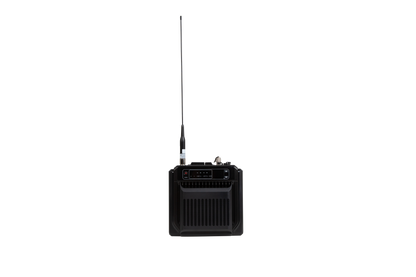

Hytera HR655 Compact DMR Repeater
Hytera HR655 Compact DMR Repeater
The Hytera HR655 is the new generation business-ready digital repeater designed to expand the communication range of your DMR radios. High performance and reliability ensures the Hytera HR655 provides the consistent, reliable and seamless voice and data communications your team needs most. It is a top pick for hotels, office buildings, supermarkets, industrial parks, and more.
Compact and lightweight, the HR655 can be flexibly wall mounted or carried on the back by tailored accessories to meet various installation requirements. The rugged design enables the HR655 to withstand harsh environments. HR655 allows communication connections anywhere you need.
Two versions are supported:
1. High power 25 W version with an attached fan (IP54)
2. Low power 10 W without fan (IP67)
| General Specification | |
|---|---|
| Frequency Range | 400-470MHz |
| Channel Capacity |
1024 |
| Channel Spacing |
12.5kHz/ 20kHz/ 25kHz |
| Operating Voltage |
DC: 14.4V土15% |
| Current Consumption (DC) |
Standby: <0.35A Transmitting: <6A |
| Battery |
12.5Ah |
| Battery Life (50-50 Duty Cycle) |
High power 25 W version: 4hrs Low power 10 W version: 9hrs |
| Frequency Stability |
<±0.5ppm |
| Antenna Impedance |
50Ω |
| Duty Cycle | 100% |
| Dimensions (H x W x D) |
High power 25W version: 201 mm x 211mm x 80.6mm (with Fan) Low power 10W version: 201 mm x 211mm x 65.8mm |
| Weight | High power 25W Version: 2.0kg Low power 10W Version: 1.9kg |
| Networking | Single-site repeater Mode, IP Multi-site Mode |
