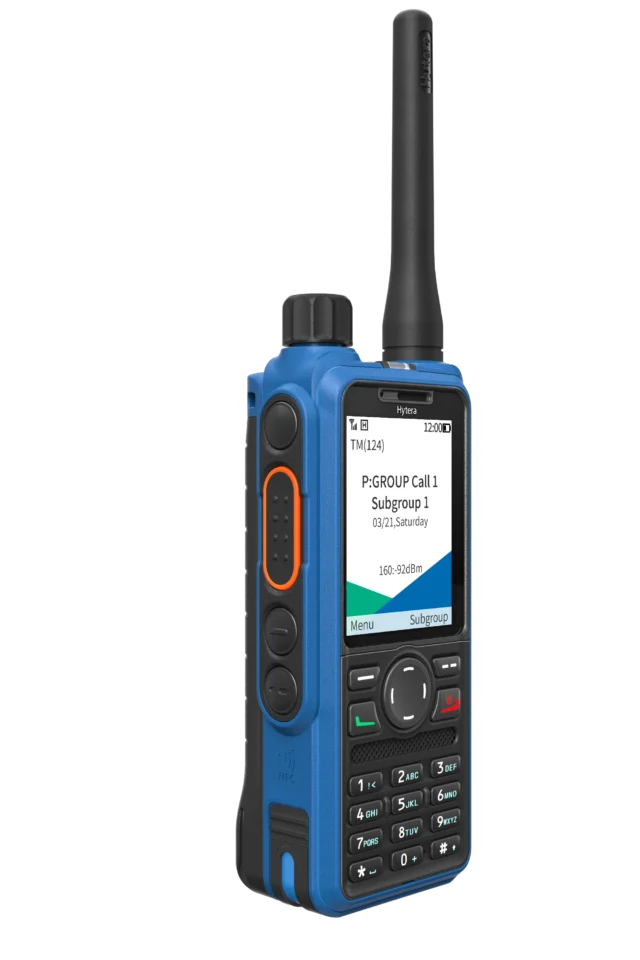

Hytera HP795Ex Intrinsically Safe DMR Portable Two-way Radio
Hytera HP795Ex Intrinsically Safe DMR Portable Two-way Radio
Introducing the HP795Ex, Hytera’s cutting-edge intrinsically safe portable DMR radio. With its secure design, durable construction, and enhanced ergonomics. Not only does it deliver crystal-clear and powerful voice quality, but it also ensures extended battery life and long-range communication capabilities.
The Hytera HP795Ex is certified with IECEx/ATEX, making it the ultimate choice for keeping workers connected in hazardous environments without any risk of fire or explosion. Industries like oil and gas, fire rescue, airports, manufacturing, and many more can rely on this reliable and secure communication solution. Stay connected, stay safe with the HP795Ex.
It comes in two variants with hazard level IIA or IIC for the gas group, so that the optimal device is available depending on the type of gas in the atmosphere:
HP795Ex IIA
- Low ATEX gas group: IIA (e.g. Propane)
- Temperature range in explosion-prone areas: -25°C to +60°C
- High transmit RF power: UHF 4W / VHF 5W
HP795Ex IIC
- High ATEX gas group: IIC (e.g. Acetylene, Hydrogen)
- Temperature range in explosion-prone areas: -25°C to +50°C
- Lower transmit RF power: 2W/1W
Authoritative IS Certifications
Through the rigorous testing of the globally recognised certification organisations, the HP795Ex has accredited IECEx/ATEX certificates which reduce the risk of accidents, and ensure the safety of users and operators.
Loud and Clear Voice Quality
With a 2W high-powered speaker, the audio is loud and crystal clear. Integrated with an AI intelligent noise reduction algorithm, automatic gain control (ACG), and other multiple audio technologies, it isolates noisy backgrounds and addresses weak sound issues, this improves the clarity of voice transmissions.
Extended Coverage
The 2W TX power extends the coverage area so critical information can be received even in remote areas. This improves collaboration in critical situations by reducing overall blind spots which enables a rapid response.
"Quick and Easy" Battery Removal
Designed with a high-grade battery protection board and battery lock, the HP795Ex avoids potential sparks even if dropped accidentally, and ensures the safe use of the battery in hazardous circumstances. Additionally, the prompt on the screen effectively addresses the security risks of non-original batteries. It also includes an intrinsically safe large-capacity battery with power-saving technology.
Wider range of operation temperatures
Thanks to new explosion-proof materials and advanced design, the HP795Ex is built to work in temperatures ranging from –25°C to 60°C in explosion-prone areas. With stable and even heat dissipation, it is engineered to work in extreme conditions, bringing extra safety and efficiency to everyday operations.
Hytera HP795Ex IIA & IIC General Specifications
| IIA Model | |
|---|---|
| Frequency Range | 400-480MHz 136-174MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Channel Spacing | 12.5kHz/20kHz/25kHz |
| Operating Voltage | 7.4V (rated) |
| Battery | 2,150mAh IIC intrinsically safe Li battery (Typical) |
| Battery Life (5/5/90) | 22h (GNSS OFF) 19h (GNSS ON) |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (H x W x D) | 130 x 55 x 37mm |
| Weight (with antenna & battery) | about 390g |
| Display | 2.4 inch LCD, 320 x240 pixel, 262000 colours |
| Connectivity | BT 5.3 BLE+EDR/WLAN 2.4G/NFC: ISO/IEC 15693 |
| IIC Model | |
|---|---|
| Frequency Range | 400-480MHz 136-174MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Channel Spacing | 12.5kHz/20kHz/25kHz |
| Operating Voltage | 7.4V (rated) |
| Battery | 2,150mAh IIC intrinsically safe Li battery (Typical) |
| Battery Life (5/5/90) | 24h (GNSS OFF) 21h (GNSS ON) |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (H x W x D) | 130 x 55 x 37mm |
| Weight (with antenna & battery) | about 390g |
| Display | 2.4 inch LCD, 320 x240 pixel, 262000 colours |
| Connectivity | BT 5.3 BLE+EDR/WLAN 2.4G/NFC: ISO/IEC 15693 |
