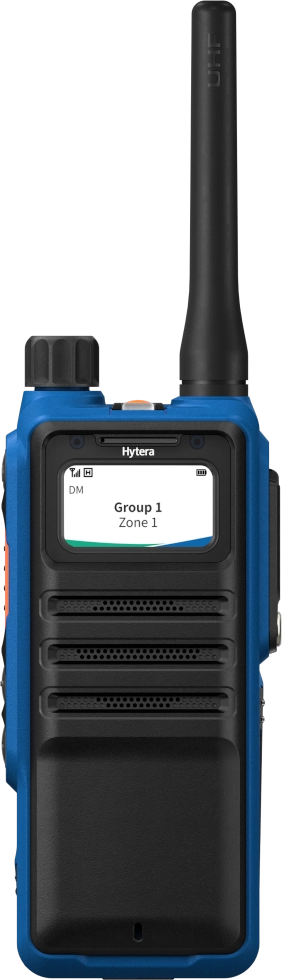

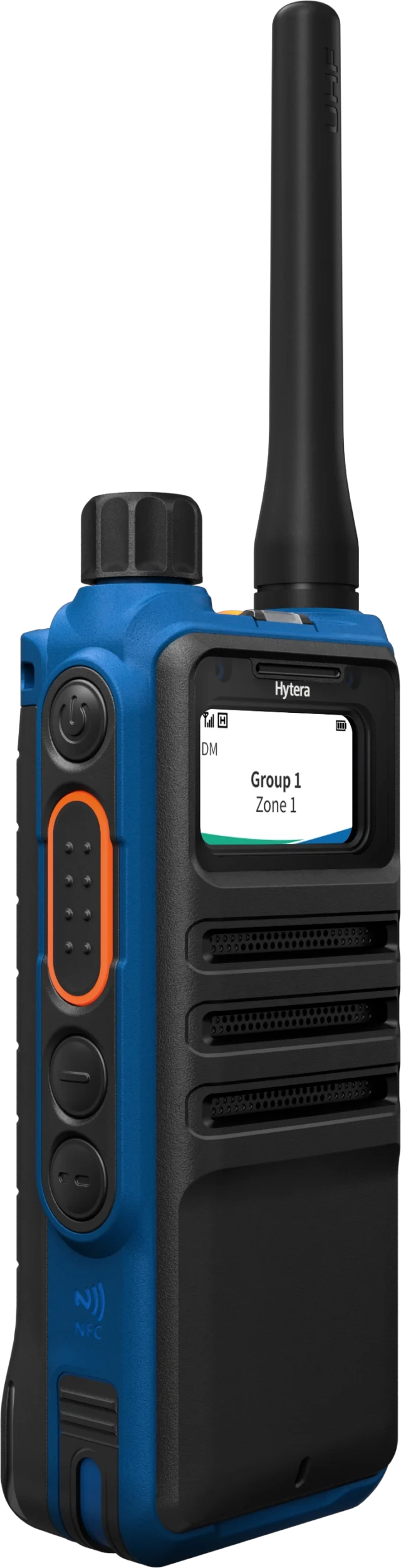

Hytera HP715Ex Intrinsically Safe DMR Portable Two-way Radio
Hytera HP715Ex Intrinsically Safe DMR Portable Two-way Radio
The Hytera HP715Ex Intrinsically Safe DMR Portable Two-way Radio is engineered with a robust design, resilient construction, and superior ergonomics. It delivers exceptional voice clarity and volume, offers prolonged operational hours, and supports long-range communication. Adhering to rigorous IECEx explosion-proof regulations, it possesses IECEx international certifications. The Hytera HP715Ex complies with worldwide explosion-proof certification standards, ensuring dependable and secure communication for sectors including oil and gas, fire rescue, airports, manufacturing, and beyond.
It comes in two variants with hazard level IIA or IIC for the gas group, so that the optimal device is available depending on the type of gas in the atmosphere:
HP715Ex IIA
- Low ATEX gas group: IIA (e.g. Propane)
- Temperature range in explosion-prone areas: -25°C to +60°C
- High transmit RF power: UHF 4W / VHF 5W
HP715Ex IIC
- High ATEX gas group: IIC (e.g. Acetylene, Hydrogen)
- Temperature range in explosion-prone areas: -25°C to +60°C
- Lower transmit RF power: 2W/1W
Authoritative IS Certifications
Through the rigorous testing of the globally recognized certification organizations, HP715Ex obtains the IECEx/ATEX certificates, to reduce the risk of accidents, and ensure the safety of users and operators.
Loud and Clear Voice Quality
With a 2W high-power speaker, the audio is louder. Integrated with AI intelligent noise reduction algorithm, automatic gain control (AGC), and other multiple audio technologies, Hytera HP715Ex isolates kinds of noisy backgrounds, and addresses weak sound issues, to make critical voice information clearer and more reliable.
Extended Coverage
2W TX power extends the coverage area. Critical information can be received even in remote areas, reducing coverage blind spots, enabling rapid response, and collaborating in the timely handling of critical missions.
"Quick and Easy" Battery Removal
Designed with a high-grade battery protection board and battery lock, Hytera HP715Ex avoid potential sparks even dropped accidentally, and ensures the safe use of the battery in hazardous circumstances. Additionally, HP715Ex prompt on screen with flashing red LED indicator, effectively addressing the security risks of non-original batteries. It also adopts a large-capacity intelligent IS battery and power-saving technology design to reduce standby power consumption, meeting the need for extended communication, and allowing seamless shift changes.
Wider range of operation temperatures
Thanks to new explosion-proof materials and advanced mechanical design, the HP715Ex is built to operate in temperatures from –25°C to 60°C in explosion-prone areas. With stable and even heat dissipation, the HP715Ex is engineered to perform in extreme conditions, enhancing safety and efficiency to everyday work.
Hytera HP795Ex IIA & IIC General Specifications
| IIA Model | |
|---|---|
| Frequency Range | UHF: 400-480MHz VHF: 136-174MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Channel Spacing | 12.5kHz/20kHz/25kHz |
| Operating Voltage | 7.4V (rated) |
| Battery | 2,150mAh IIC intrinsically safe Li battery (Typical) |
| Battery Life (5/5/90) | 22h (GNSS OFF) 19h (GNSS ON) |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (H x W x D) | 130 x 55 x 37mm |
| Weight (with antenna & battery) | about 390g |
| Display | 1.47 inch LCD, 172*320 pixel, 262000 colours |
| Connectivity | BT 5.3 BLE+EDR/WLAN 2.4G/NFC: ISO/IEC 15693 |
| IIC Model | |
|---|---|
| Frequency Range | 400-480MHz 136-174MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Channel Spacing | 12.5kHz/20kHz/25kHz |
| Operating Voltage | 7.4V (rated) |
| Battery | 2,150mAh IIC intrinsically safe Li battery (Typical) |
| Battery Life (5/5/90) | 24h (GNSS OFF) 21h (GNSS ON) |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (H x W x D) | 130 x 55 x 37mm |
| Weight (with antenna & battery) | about 390g |
| Display | 1.47 inch LCD, 172*320 pixel, 262000 colours |
| Connectivity | BT 5.3 BLE+EDR/WLAN 2.4G/NFC: ISO/IEC 15693 |
