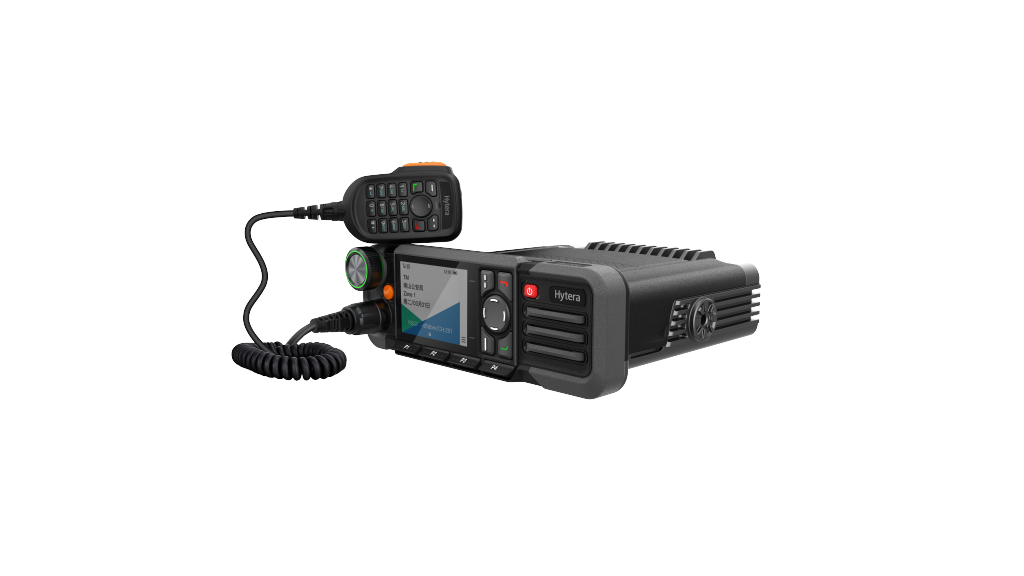

Hytera HM785 Professional DMR Mobile Two-way Radio
Hytera HM785 Professional DMR Mobile Two-way Radio
The Hytera HM785 supports a standard single control head and remote control head (Single or dual) to suit different environments such as vehicles, motorcycles and fixed control rooms, ensuring efficient communication. Moreover, it provides various connections, through which rich applications can be integrated into existing services to improve work efficiency. The HM785 can make full-duplex calls either to another HM785 or with telephones or cell phones, and the calls flow as naturally as face-to-face conversations. Single Frequency Repeater Mode (SFR) in digital mode (requires full-duplex hardware version),through interference suppression technology, the HyteraHM785 can increase the communication range in DMO mode by receiving a signal in one time slot and simultaneously retransmitting it on the other time slot at the same frequency.
Highlights of Hytera HM785
MORE FLEXIBLE
CLEARER AUDIO
MORE RELIABLE
RICH SCALABLE APPLICATION
Specifications of Hytera HM785
| General data | |
|---|---|
| Frequency Range | V1: 136-174MHz Uv : 350-470MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 (256 channels per zone) |
| Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
| Operating Voltage | 13.6V±15% |
| Current Drain(Standby) | <0.5 A |
| Current Drain(transmit) | 5W: <5A 25W: <8A 45W: <12A |
| Current Drain(receive) | <2.0 A |
| Frequency Stability | ±0.5 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions(H×W×D) mm | 61.5 mm x 177 mm x 179 mm |
| Weight | 1520 g |
| Display | 2.4 inch, 4 line 160*128 pixels 262200 colours |
| BT | BT5.0 BLE+EDR (hardware option) |
| Environmental Specs | |
|---|---|
| Operating Temperature | -30 ℃~+60 ℃ |
| Storage Temperature | -40 ℃~+85 ℃ |
| ESD | IEC 61000-4-2(level 4); ±15 kV(Air); ±8 kV(Contact) |
| MIL Standard | MIL-STD-810 G |
| Dust & Water Protection | IP54 |
| Humidity | Per MIL-STD-810 G Standard |
| Vibration,Drop&Shock | Per MIL-STD-810 G Standard |
