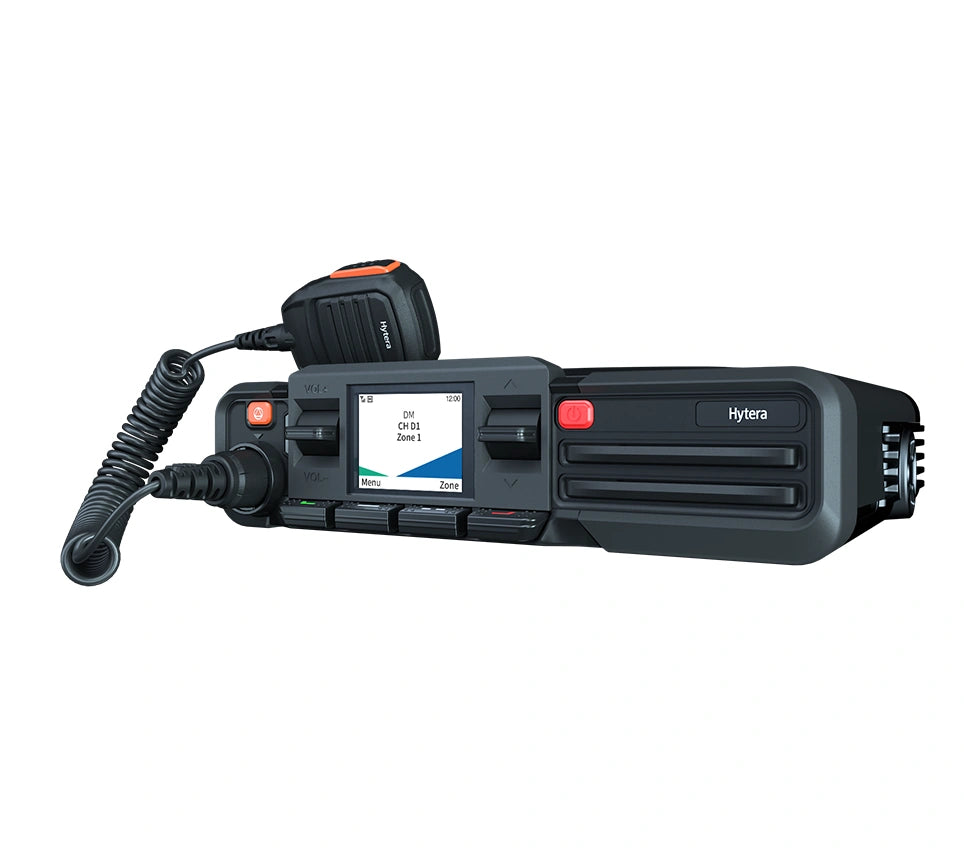

Hytera HM685 Professional DMR Mobile Two-way Radio

Name: Hytera HM685 Professional DMR Mobile Two-way Radio
Brand: Hytera
Availability: InStock

This new generation entry-level professional DMR mobile two-way radio is designed to provide reliable voice and data communication in both vehicles and desktop installations. Compact and lightweight, the radio is easy to install. With the ergonomic design, the four piano-style buttons make operations effortless. The AI-based noise cancellation ensures the radio delivers superb clear audio without ambient noise. The radio is born to be your best partner in transportation, business, utilities, and more.

Highlights of Hytera HM685

RELIABLE COMMUNICATION

Thanks to the high RX sensitivity, the HM685 can deliver clear and dependable communications even in areas where the signal is unstable or weak.

DIGITAL AND ANALOGUE COMPATIBILITY

The Hytera HM685 can operate in either analogue or digital mode, which is the ideal solution for you to migrate from analogue to digital with minimal disruption and investment.

INNOVATIVE DESIGN

Compact and lightweight, the Hytera HM685 is easy to install, remove, or operate in the vehicle. The front panel adopts two-shot molding to make the operation more recognizable. The transflective display is readable even in the dark or direct sunlight. At the bottom of the display, the four piano-style keys offer great haptic feedback when pressed.

WIRELESS CONNECTION

With the built-in BT 5.0 module*, the Hytera HM685 can work with the BT audio accessories to boost your safety and productivity during in-vehicle communications. And these radios can be programmed through BT, saving time and resource.*Please be advised that this feature is applicable to the BT HM685 version only

CRYSTAL-CLEAR AUDIO

The Hytera HM685 delivers superb audio in noisy streets or highways. The AI-based noise cancellation filters out echoes and background noises such as horn and engine sounds, making you hear and be heard in the conversation. The howling suppression prevents the screeching or howling feedback between two radios in the same vehicle, ensuring clear and uninterrupted communication on the move.

SUPERIOR DURABILITY

The Hytera HM685 withstands harsh temperatures, shock, and vibration, and meets MIL-STD-810G standards, and IP54 for dust and water intrusion. The connection between the palm microphone and the 10-pin aviation connector is very secure preventing it from becoming loose. The palm microphone cord has excellent stretching ability to protect it thus giving the maximum service life.

Specifications of HM685

General data
Frequency Range	V1: 136-174MHz U1: 400-470MHz
Channel Capacity	512
Zone Capacity	32 (32 channels per zone)
Channel Spacing	Analog: 25/20/12.5kHz ;Digital: 12.5kHz
Operating Voltage	13.6V±15% DC
Current Drain(Standby)	<0.5A
Current Drain(transmit)	<2.0A
Current Drain(receive)	5W: <4A 25W: <8A 45W: <12A
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Dimensions(H×W×D) mm	42 x 159 x 164 mm
Weight	1150g
Display	1.45 inch, 4 Line 320x240 pixels
BT	BT5.0 BLE+EDR (hardware option)

Environmental Specs
Operating Temperature	-30℃ to +60℃
Storage Temperature	-40℃ to +85℃
ESD	IEC 61000-4-2（level 4) ±15 kV (Air) ±8 kV (Contact）
Dust & Water Protection	IP54
Humidity	MIL-STD-810H
Vibration,Drop&Shock	MIL-STD-810H
