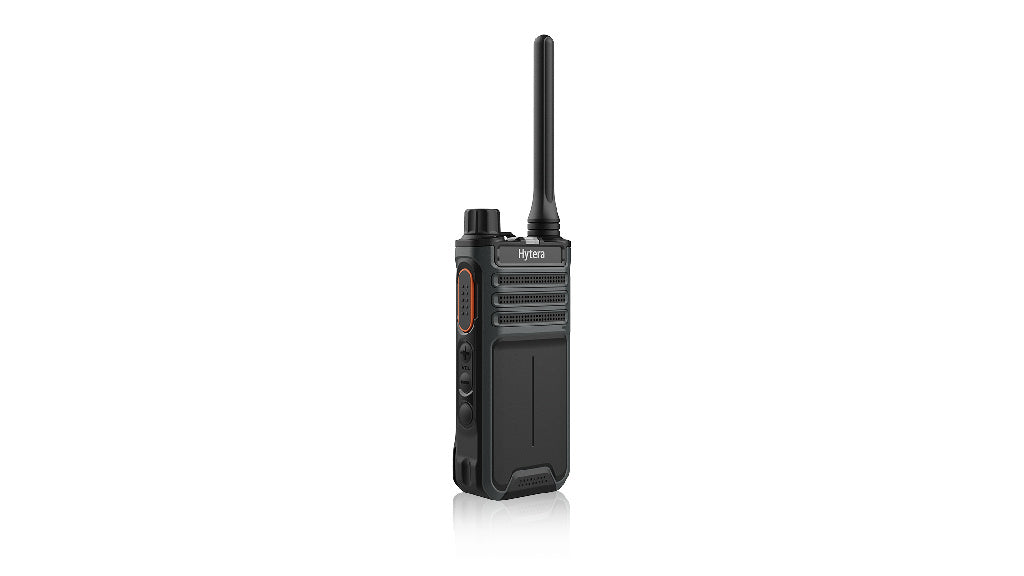

Hytera BP515 DMR and Analogue Radio
Hytera BP515 DMR and Analogue Radio
Supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging, roaming will enhance your business service. The Hytera BP515 series has extended range in class and features 64 channels, making group communication more flexible.
Specifications of Hytera BP515
| General data | |
|---|---|
| Frequency Range | VHF：136-174 MHz U1：400-470 MHz |
| Channel Capacity | 256 (128 analogue, 128 digital) |
| Zone Capacity | 4 (16 channels per zone) |
| Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
| Operating Voltage | 7.4 V (rated) |
| Battery | Standard:1500 mAh 7.4 V Optional:2200 mAh 7.4 V |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | 12 h (1500 mAh); 16 h (2200 mAh) |
| Frequency Stability | ±0.5 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions(H×W×D) mm | 115 mm x 55 mm x 29.5 mm |
| Weight | 210 g |
| BT | BT 5.0 BLE+EDR (hardware option) |
| Environmental Specs | |
|---|---|
| Operating Temperature | -30 ℃ to +60 ℃（Radio only - Battery -20 ℃） |
| Storage Temperature | -40 ℃ to +85 ℃ |
| ESD | IEC 61000-4-2 (Level 4) ±8 kV (contact); ±15 kV (air) |
| MIL Standard | MIL-STD-810 G |
| Dust & Water Protection | IP54 |
| Humidity | MIL-STD-810 G |
