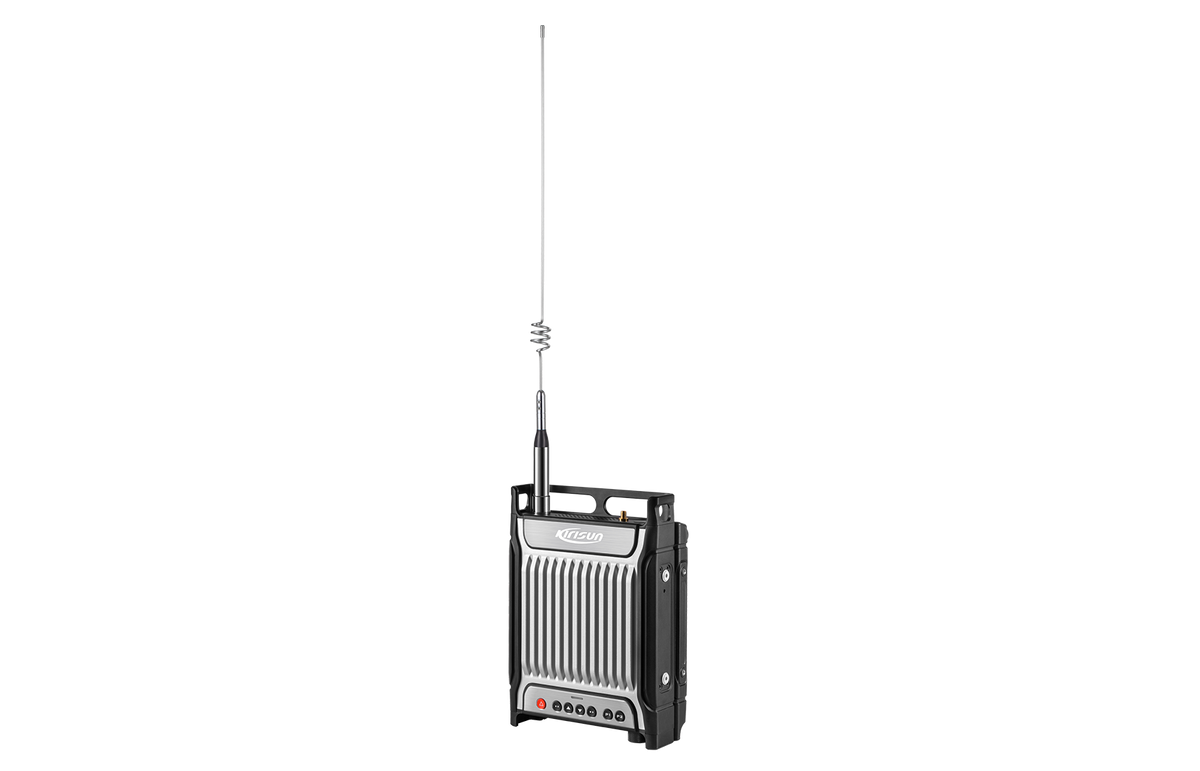

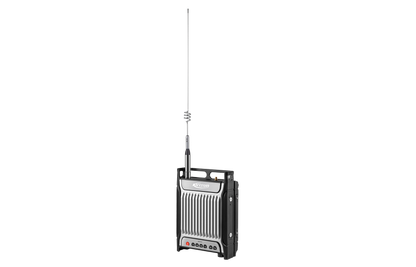

DR700 Backpack Repeater

DR700 Backpack Repeater

When your team requires extended coverage from the two-way radio system, you can opt for adding more base stations, if you have enough budget and frequencies. If not, DR700 Backpack repeater is an ideal solution. Using one frequency, it efficiently extends DMO coverage. Due to its compact size, you have much more flexibility to install it wherever needed. Light weighted, DR700 can be easily backpacked and moved along with the mobile team.

Extend DMO Coverage
Support single-frequency repeater in DMR direct mode, greatly saving frequency resources and extending communication range.
Small and Light
Integrated and compact design, DR700 can be easily backpacked and moved along with the mobile team.
Dual Keypads
Panel with channel display, LED indicators, channel key, menu key, alarm key, dial key and on-hook key, audio interface for external hand microphone, and dual keypads for convenient operation.
Multiple Modes of Operation
It supports Analog, DMR Tier II conventional, DMR Tier III & MPT1237 trunking mode, and single frequency repeater mode. It can be used as a backpack repeater or mobile radio.
Easy Deployment
DR700 is equipped with a 13.4Ah(standard) or 17Ah (optional) high power battery and a high gain antenna. No need for cabling and external power. Ready for to be deployed in case of emergency.
Specification
General

Frequency Range
VHF:136-174MHz;
UHF:350-400Mhz, 400-470MHz;
Channel Capacity
1024
Channel Spacing
12.5kHz/20kHz/25kHz
Operating Voltage
DC: 14.4V
Dimensions(H·W·D)
170*243*75mm (with battery)
Weight (with standard battery)
About 3.2Kg
RF Power Output
25W(Adjustable)
Sensitivity
Digital：0.22μV/BER3%(Typical)
Operating Temperature
-30℃~ +60℃
Storage Temperature
-40℃~ +85℃
Battery
13.4Ah(standard), 17Ah(optional)
