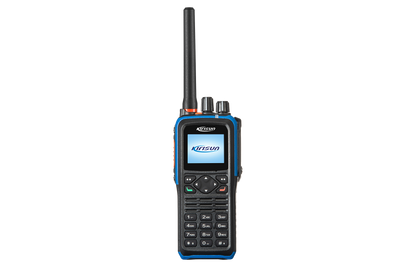

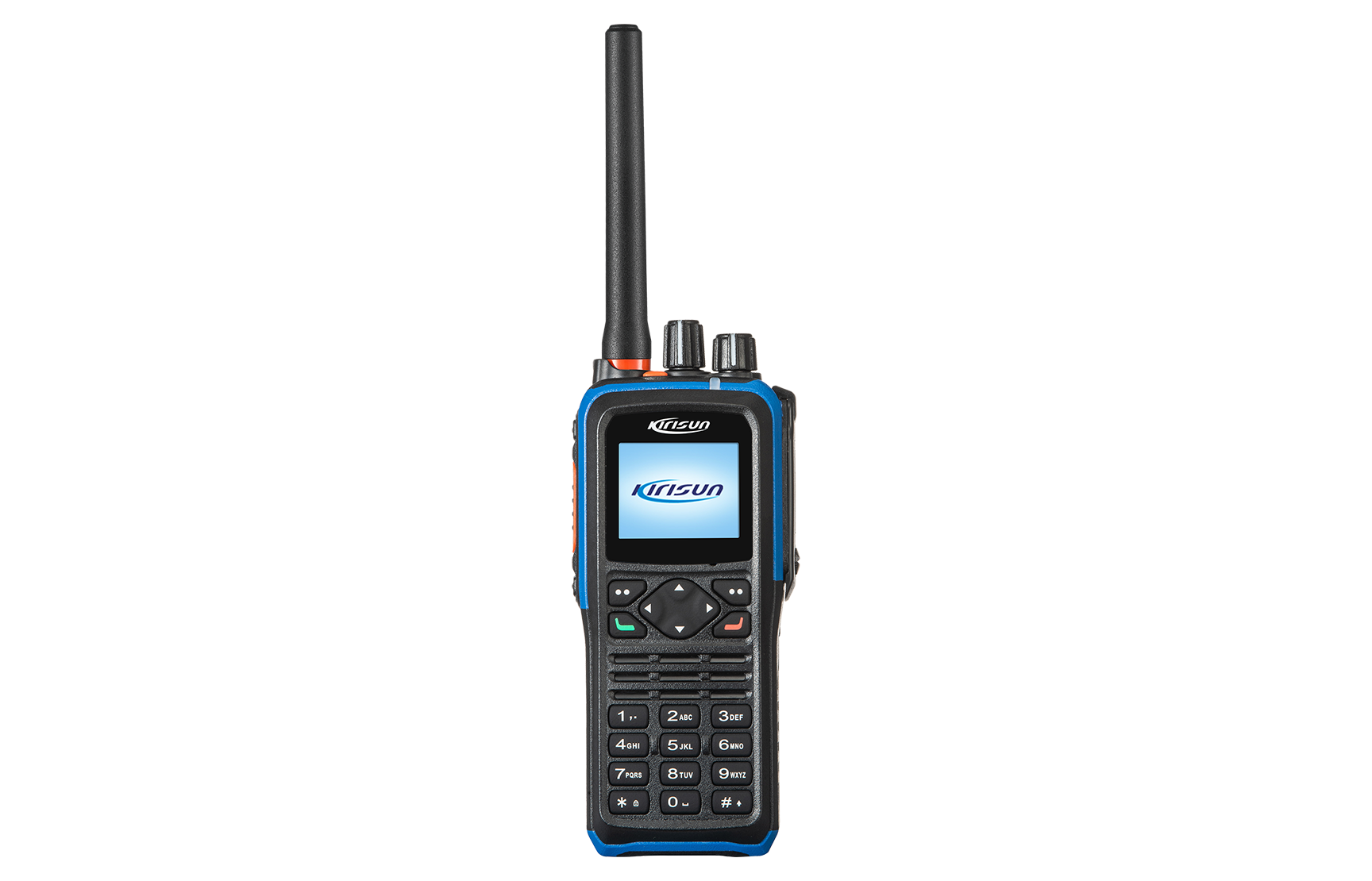

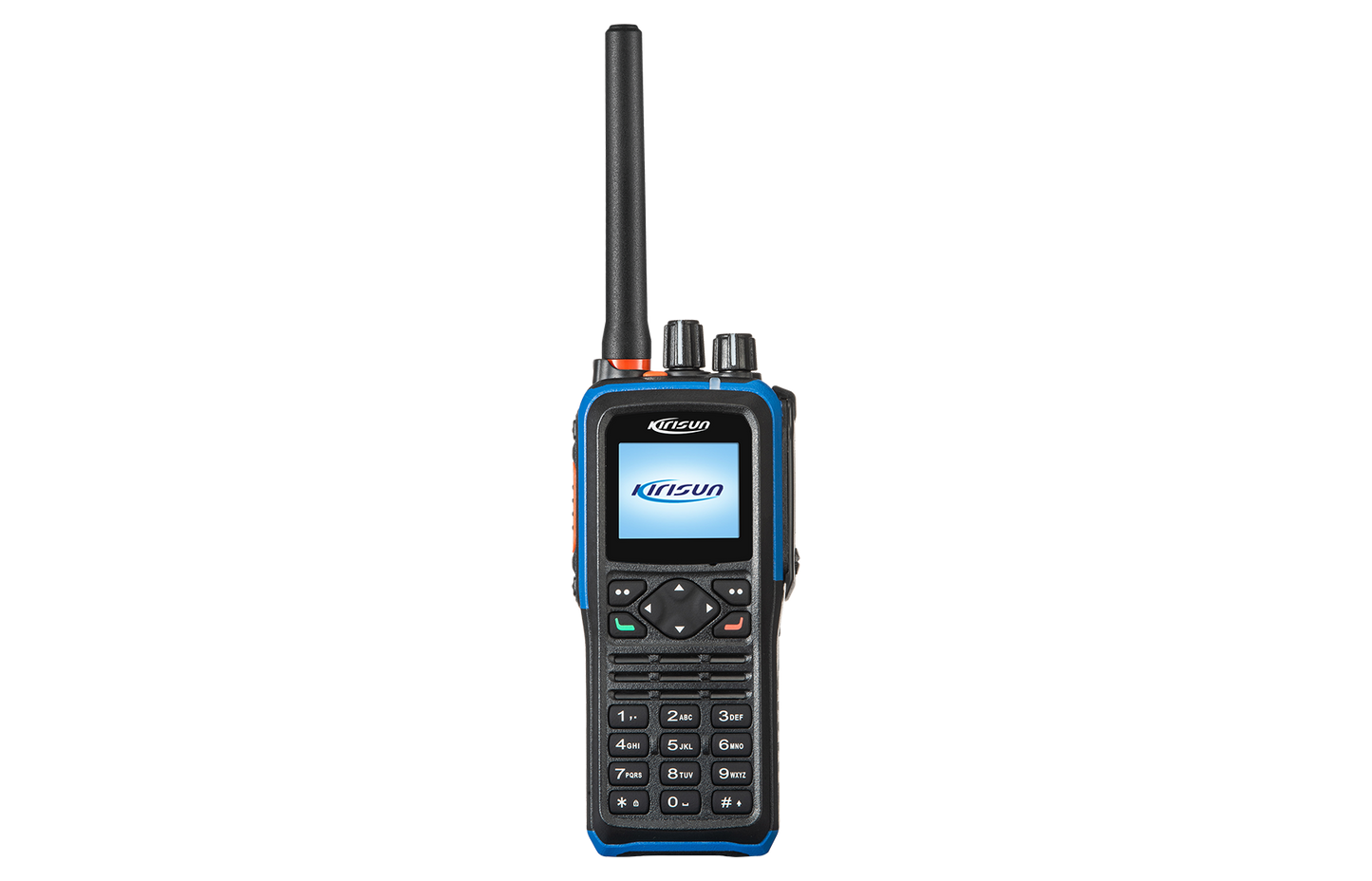

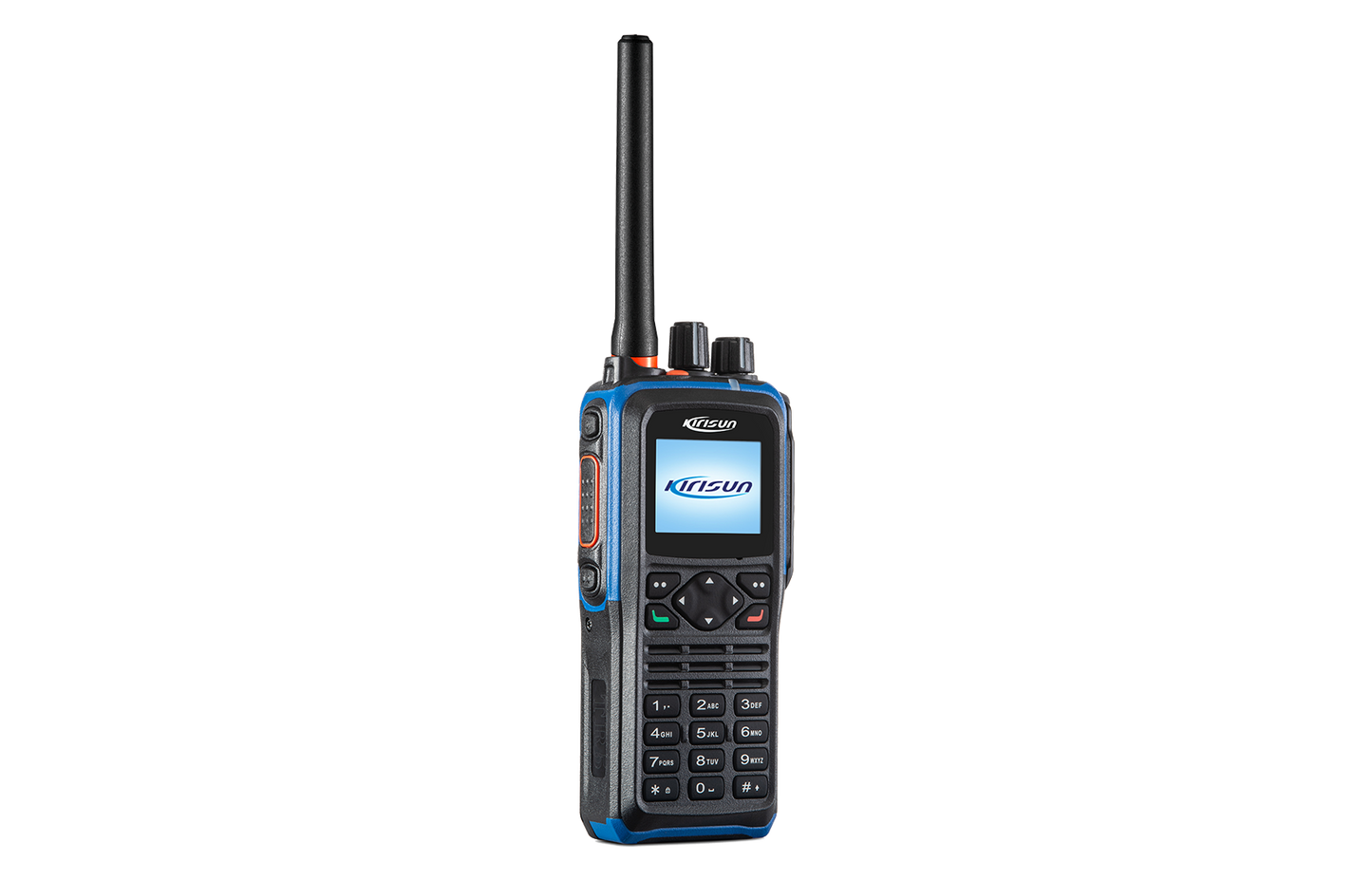

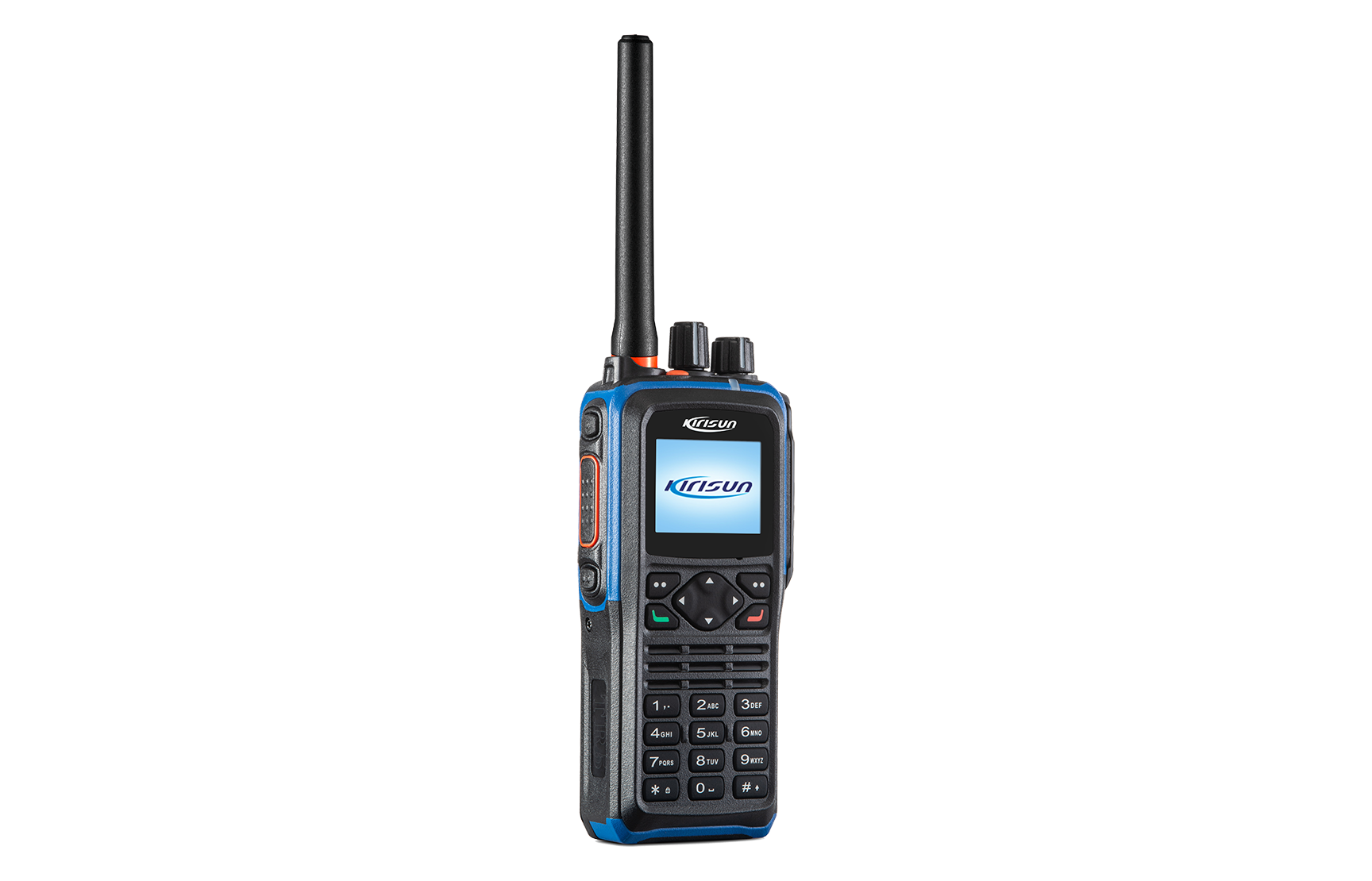

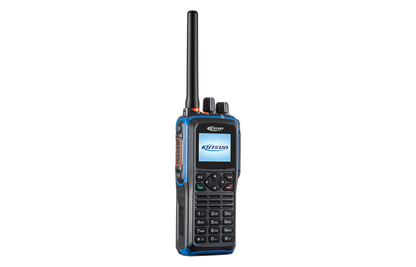

DP810E Kirisun Intrinsically Safe Radio

DP810E Kirisun Intrinsically Safe Radio

DP810E is an intrinsically safe DMR portable radio engineered for hazardous environments where flammable gases, combustible dust, and tough field conditions demand higher safety assurance. ATEX/IECEx protection, IP68 ruggedness, high-quality audio, and built-in emergency functions help oil, gas, chemical, refinery, power, and firefighting teams communicate safely and reliably.

Enhanced Safety for Worker Protection
Built-in man-down, lone worker functions, and a dedicated emergency button help users trigger an alarm and initiate a voice call to a pre-programmed colleague or group when an accident occurs.
Specification
General

Frequency Range
136-174MHz, 330-370MHz, 350-400MHz,400-480MHz;
Channel Capacity
1024
Zone Capacity
248
Channel Spacing
12.5kHz/20kHz/25kHz
Operating Voltage
7.4V DC±20%
Battery
2150mAh
Dimensions(H·W·D) (with standard battery, without antenna)
157.5mmx56mmx41.4mm
Weight (with standard battery)
500g
LCD Display
1.8-inch, 5 rows
RF Power Output
＜2W
Sensitivity Digital
0.22μV/BER5%（Typical）
Operating Temperature
-20℃~ +50℃
Storage Temperature
-40℃~ +85℃
Dust & Water Protection
IP68
Shock and Vibration
Per MIL-STD-810 C/D/E/F/G/H Standard
Salt Fog Resistance
Support
Anti-explosion levels (ATEX)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T120℃ Db
Anti-explosion levels (IECEx)
Ex ib IIC T4 Gb
Ex ib IIIC T120℃ Db
