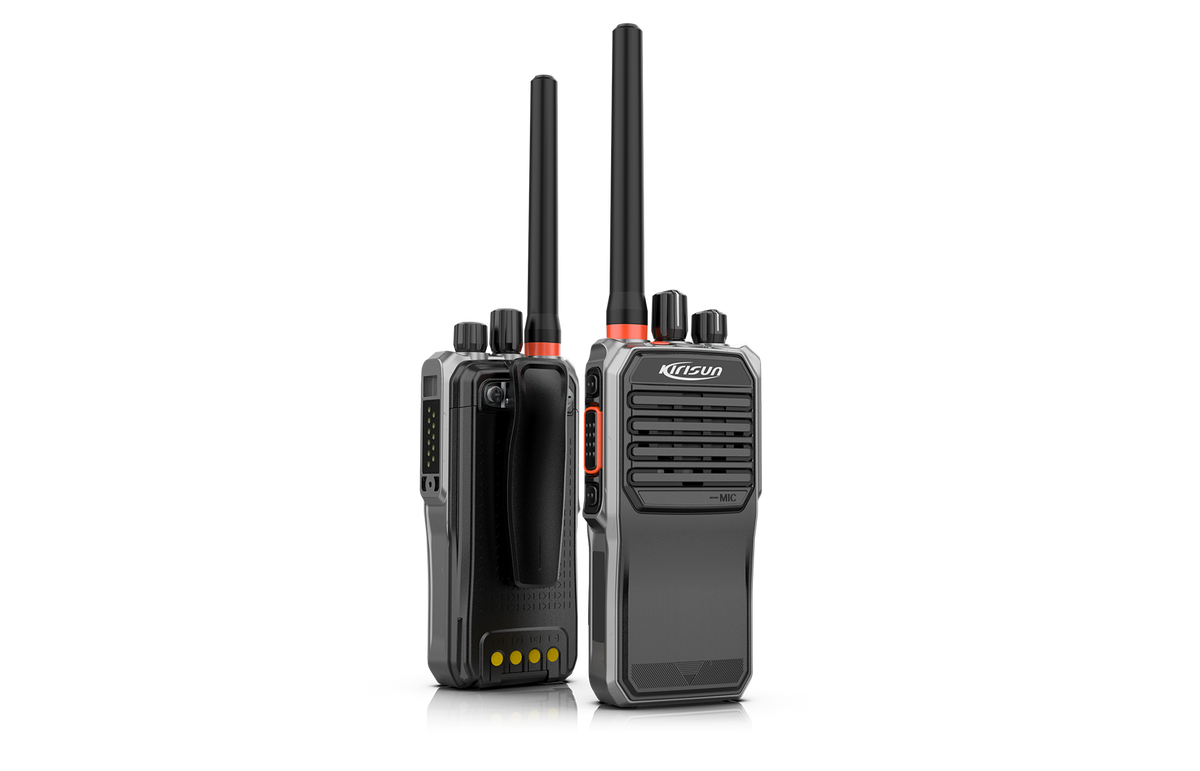

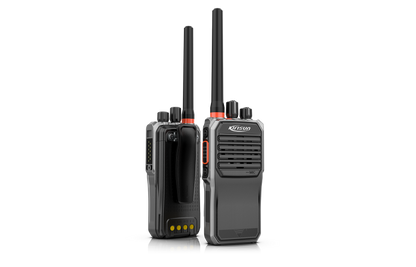

DP685 Kirisun Professional Portable Radio

DP685 Kirisun Professional Portable Radio

Lightweight and robust, the DP 685 is an open-standard DMR radio capable of providing superior quality voice communication. It is IP67 water and dust proof and MIL-STD 810 rated rugged. With a long-lasting battery, DP685 is an ideal solution for organizations looking for a cost-effective communication equipment with rich digital functions. With its remarkable quality, the radio increases your management efficiency and enables you to be responsive in emergent situations.

Long Battery Life
DP685 with standard the 2000mAh battery can work up to 13-15 hours. 2500mAh battery is available as optional.
Specification
General

Frequency Range
VHF:136-174MHz;
UHF:400-470MHz;
Channel Capacity
1024
Zone Capacity
248
Channel Spacing
12.5kHz/20kHz/25kHz
Operating Voltage
7.5V DC±20%
Battery
2000mAh Li-ion (standard) ,2500mAh Li-ion(optional)
Battery Life (5-5-90 Duty Cycle, High TX Power)
Analog:13.5 hours @2000mAh
Digital: 15.5 hours @2000mAh
Dimensions(H·W·D) (with standard battery, without antenna)
123mmx55mmx33mm(2000mAh)
Weight (with standard battery)
About 353g(2000mAh)
LCD Display
none
RF Power Output
VHF:1W/5W; UHF:1W/4W
Sensitivity
Analog：0.16μV(12dB SINAD)（Typical）
Digital：0.18μV/BER2%（Typical）
Operating Temperature
-30℃~ +60℃
Storage Temperature
-40℃~ +85℃
Dust & Water Protection
IP67
