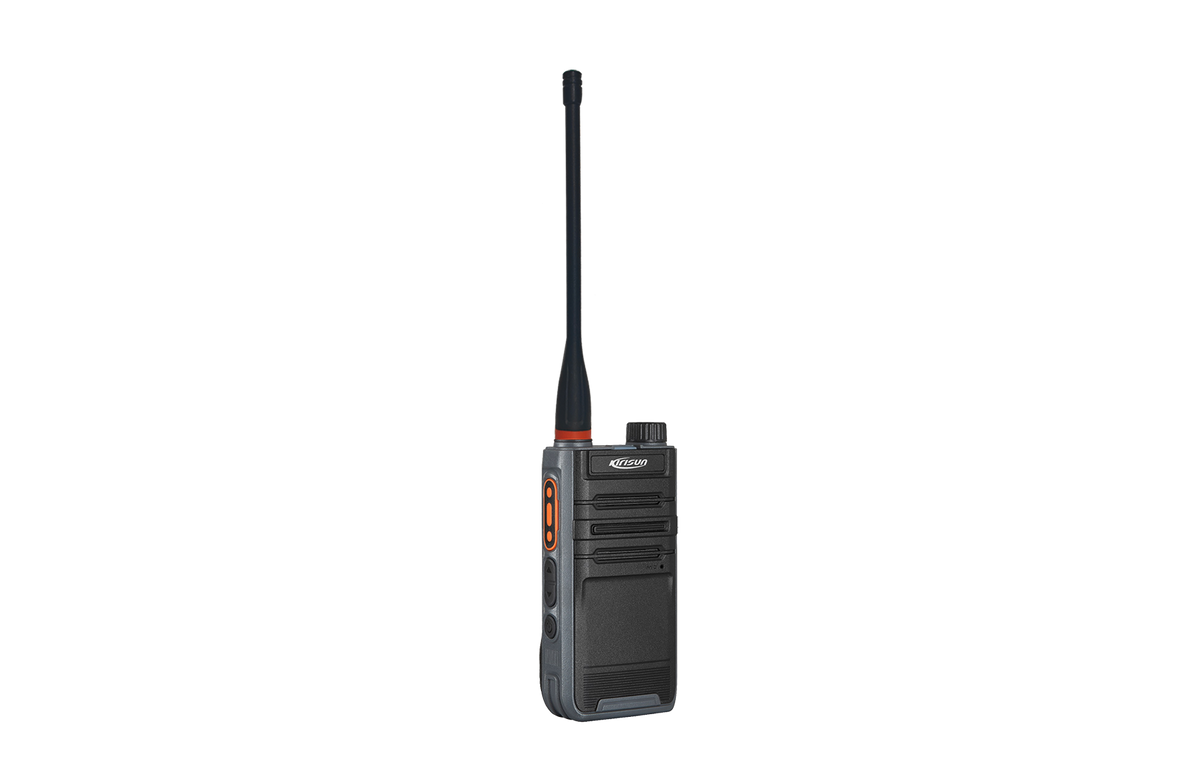

DP275 Business Portable Radio

DP275 Business Portable Radio

A new generation of business radios, the entry level DP275 is compact, lightweight, and deliver loud and clear audio that allows you to hear and be heard in background noise. With it's innovative design, the DP275 has better performance than analogue radios. It is designed to offer stable communication while remaining cost-effective, making it suitable for everyday business communication.

Loud and Clear Audio
Built-in 2W high-power loudspeaker to deliver loud and clear audio.
Easy to Operate
The frosted texture and anti slip shell design make it easy for users to operate with one hand.
Analog and Digital Mode
The DP275 also operates on analogue, to ease migration of devices to digital radio technology.
Power Saving Mode
Support battery power saving function. When the radio enters power saving mode, the working time is longer.
Specification
General

Frequency Range
UHF: 400-470MHZ
Channel Capacity
16
Channel Spacing
12.5kHz/25kHz
Operating Voltage
7.5V DC+20%
Operating Temperature
-20°C~+60°C
Battery Capacity
1400mAh
Dimension H*W*D(mm)
116*60*34mm
Weight (with batteryand antenna)
≤216g
Battery Life (5-5-90 Duty Cycle)
10 Hours
Frequency Stability
±1.5ppm
Transmitter

Power Output
4W
FM Hum and Noise
≥40dB@12.5kHz; ≥45dB@25kHz
Frequency Deviation
≤5kHz@25kHz; ≤2.5kHz@12.5kHz
Audio Distortion
≤3%
Audio Response
+1~-3dB
Receiver

Sensitivity
-121dBm
Intermodulation
≥65dB@12.5/20/25kHz
Adjacent Channel Selectivity
≥60dB@12.5kHz;≥70dB@25kHz
Max. Audio Power
2W
Rated Audio Power
≤3%
Hum and Noise
≥40dB@12.5kHz; ≥45dB@25kHz
Conducted Spurious Emission
＜-57dBm
