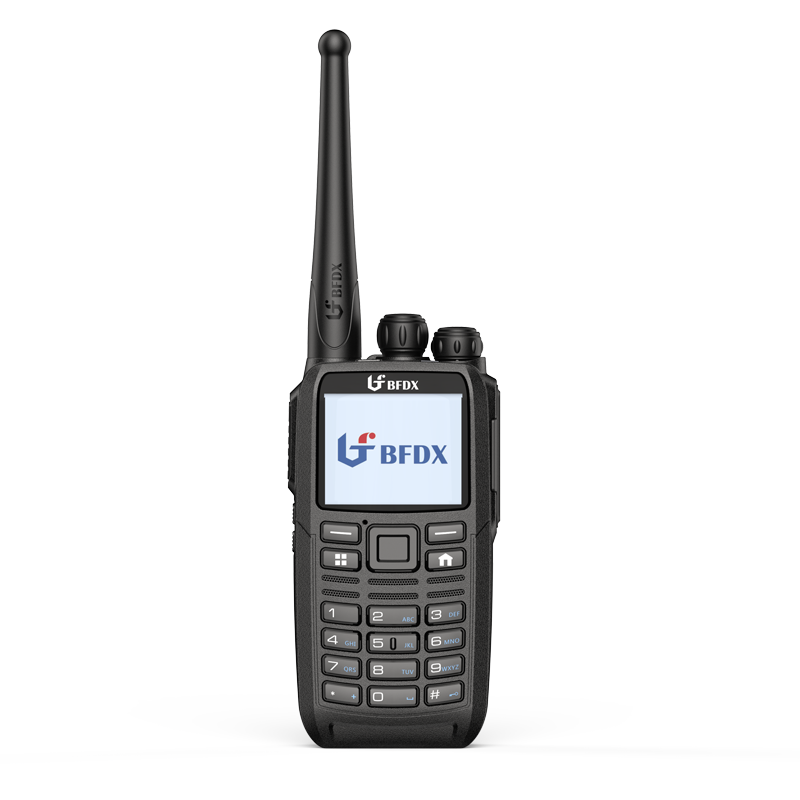

Belfone BF-TD505 Commercial Portable Pseudo Trunking Radio

Belfone BF-TD505 Commercial Portable Pseudo Trunking Radio

BF-TD505 is a two DMR migration radio designed for business users, such as hotels, restaurants, supermarkets, construction sites, etc. Besides all the conventional analog functions, our dual-mode radios bring you a whole new set of digital features, such as two timeslots, versatile calls, remote kill/revive, and a clear digital audio. BF-TD505 is cost-effective and feature-rich.

Highlights

Small Size and Light Weight

Small enough to be held comfortably in your hand and light enough not to be a burden.

Manual Channel Editing

You can add/delete/edit channels on your radios without having to connect to a PC.

Radio Priority-Based Interruption

A radio with higher priority can interrupt communications between radios with lower priorities, either to transmit or to clear a channel for more important communications. This brings better dispatching efficiency to the team.

Remote Kill/Revive

Such functions enable you to kill or revive a radio over the air. This greatly facilitates dispatching work and can be especially useful should a radio happen to be lost. You can easily remote kill the lost radio and confidential information can be kept from leaking out.
A Long Battery BF-TD505 can function for longer than any conventional analog radios (digital 18 hours, analog 14 hours).

Excellent Audio Quality

Excellent digital audio quality comes from the AMBE+2™ vocoder and FEC technology

Automatic Roaming(Programmable)

In an IP multi-site network, this feature enables BF-TD505 to automatically roam among all sites and stay connected, delivering more flexibility and efficiency.

Private Call, Group Call and All Call

The versatile calling functions bring more efficiency to your teamwork.

DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications. When one slot is occupied, the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.

Digital/Analog Dual Modes

Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.

Specifications

General
Frequency Range VHF:136-174MHz/UHF:350-400MHz/UHF:400-480MHz/UHF:450-520MHz
Screen 1.77'' TFT 128*160RGB
Channel Capacity 1024
Zone 64
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 7.4V(±20%)
Battery Capacity 1800 mAh
Average Battery Life(5/5/90) Digital 20 hour Analog 14 hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 56(L)* 32(W)* 109 (H)mm
Weight 239g(include battery)
