Motorola SLR5100|Digital Repeaters

Motorola SLR5100

Digital Repeaters

To achieve business success, you need reliable voice and data communication that can fully cover business operations. The MOTOTRBO SLR5100 relay station provides high-performance and highly reliable two-way intercom services with all the features you need for workplace communication.

Inquiry

Highlights of Motorola SLR5100

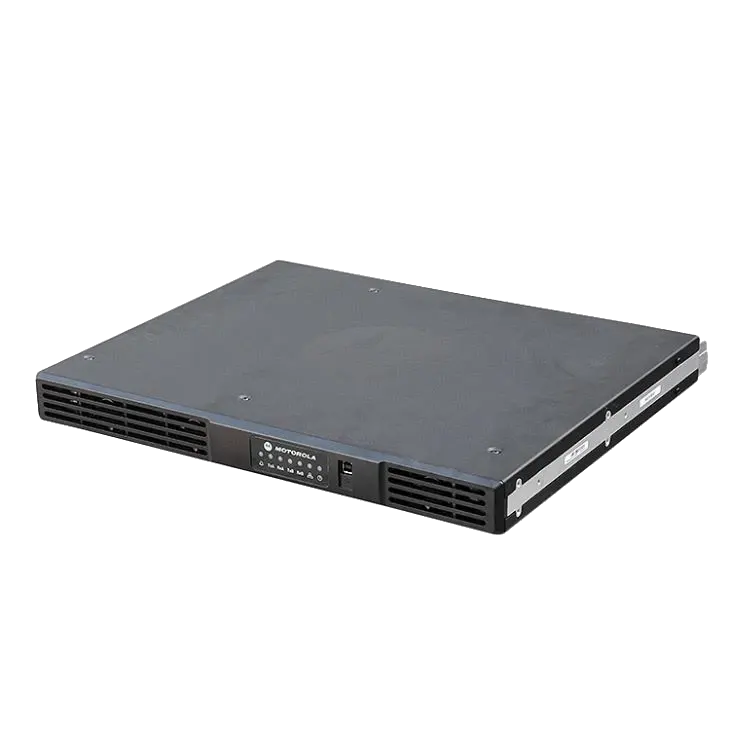

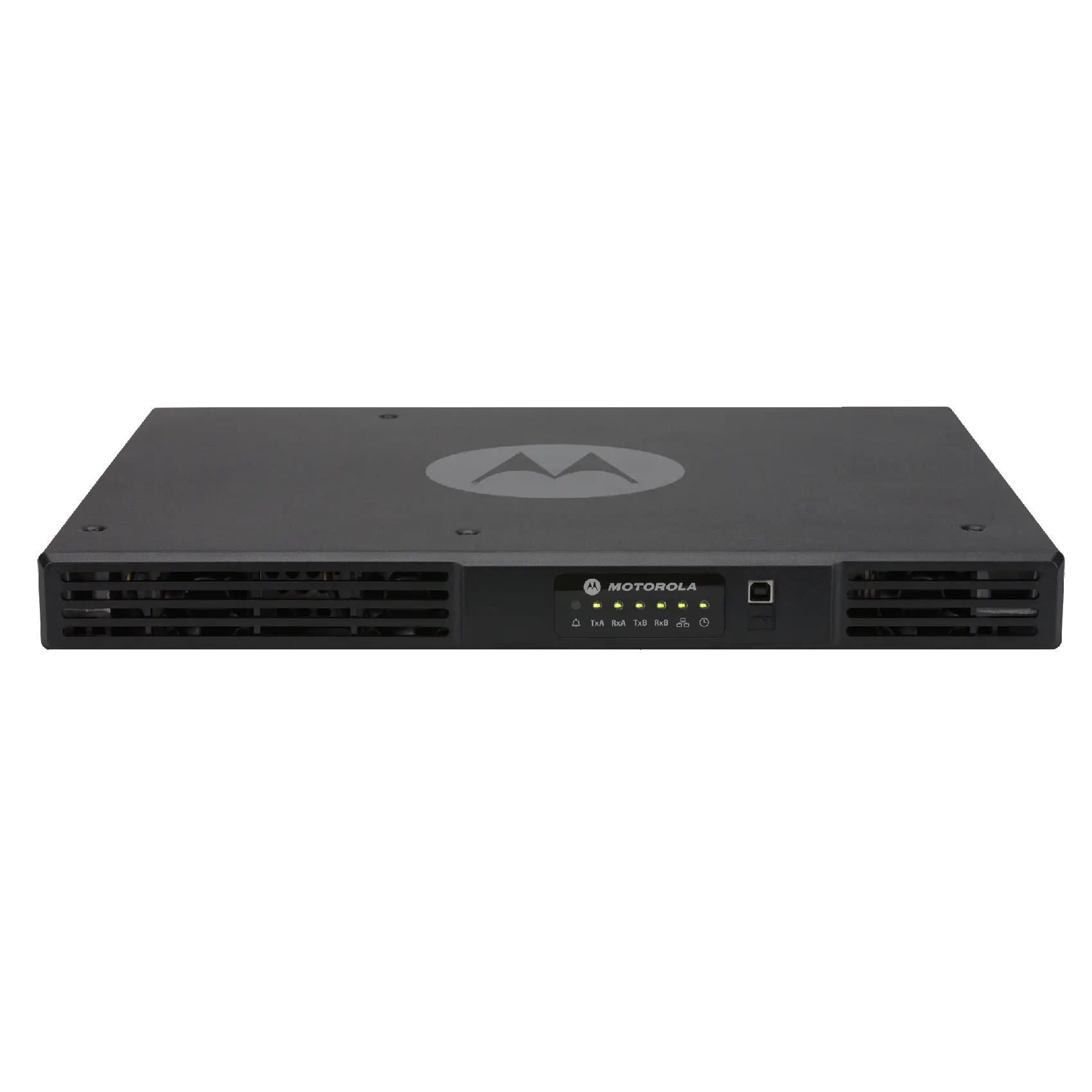

Fashionable Appearance

The SLR5700 has a stylish appearance and low power consumption, designed specifically for low cost of ownership. With a huge technological leap, it represents the next generation of relay stations.

Wide range of applications

The SLR5700 is both versatile and powerful, perfectly combining excellent two-way intercom functionality with advanced digital technology. It seamlessly integrates voice and data, providing easy-to-use advanced features and higher capacity to meet your communication needs from the field to the workshop.

System

Whether you need the simplicity of a traditional single site system or the powerful clustering capabilities of Capacity Plus, Linked Capacity Plus, Connect Plus, or Capacity Max, the SLR5100 can provide excellent digital two-way intercom services for your employees. When you stop using traditional simulation systems, it can still be used as a simulation relay station (Digital Conventional System or MPT 1327) or mixed mode analog/digital relay station.

Design for the future

Motorola Solutions is committed to providing you with a more comprehensive employee communication solution as your needs change, so the SLR5100 was designed with your future needs in mind. Compared to the first generation relay station, it has 10 times the processing power, 15 times the memory, and 125 times the data storage. The architecture even includes extension modules. We can meet your future needs for more features at any time.

High Efficiency

Advanced RF technology provides exceptional energy efficiency for the SLR5100. It also has a space saving 1U height and a lower thermal footprint, which can help you achieve extremely low cost of ownership. The maintenance requirements for this product are simple, with on-site replaceable power amplifier, power supply, and modem modules. The front panel USB port supports easy configuration and also provides optional remote management support. It also has built-in features such as a 3A battery charger, external alarm port, and auxiliary power output, which can simplify on-site installation.

High Performance

The SLR5100 is designed to provide reliable operation around the clock, even at a continuous full transmission power of 50W. Its high-quality design has been validated through Motorola's Accelerated Life Test (ALT) program and meets strict quality standards. To provide reliable coverage in your office, this product also features a next-generation receiver design with high sensitivity and improved sound insulation. Combined with a transmission power of 50W and digital error correction, it can provide you with clear voice quality even under the most unfavorable conditions. The SLR5700 supports all feature sets of M0TOTRB0 and is compatible with all M0T0TRB0 system architectures: digital conventional single base station system, IPSiteConnect, Capacity Plus, Linked Capacity Plus, ConnectPlus, and CapacityMax. The IP interface supports you to directly build applications and consoles into your system.

Q1:

What is the signal coverage range of SLR5100?

A1:

The communication distance of the relay station depends on the antenna installation height, output power, environmental obstacles, and the performance of the terminal equipment. The SLR5100 supports a maximum transmission power of 50W (continuous operation). The following are the coverage radii of SLR5100 in different scenarios:
City centers or densely populated areas: 5-10 kilometers, where signals may be obstructed and reflected by high-rise buildings and reinforced concrete structures; Suburban or semi open areas: 10-25 kilometers; Open plains or sea surfaces: The typical coverage radius can reach 30-50 kilometers (if the antenna is installed at a high enough height, the distance will be further extended); Indoor or large building complexes: A single SLR5700, when paired with an indoor antenna system, can typically cover 30-50 floors of office buildings or factories/warehouses of over 100000 square meters.

Q2:

In what scenarios is the SLR5100 suitable for use?

A2:

The SLR5100 is suitable for use in most commercial real estate, medium-sized factories, docks, and schools. At a standard installation height (30-50 meters), it can provide reliable digital call coverage of about 15 kilometers stably.

Specifications of Motorola SLR5100

General
Environmental

General

Power	1~50W
Channel Spacing	12.5kHz/20kHz/25kHz
Digital Agreement	ETSI TS 102 361-1，-2，-3
Channel Capacity	64
Input voltage (AC)	100~240Vac，47~63Hz
Input voltage (DC)	11~14.40Vdc
Current (AC) 110V/240V	0.18/0.25A(standby)；1.5/0.9A(launch)
Current (DC)	0.7A（standby）；9.5A（launch）
Frequency Range	UHF：400~470MHz；VHF：136~174MHz；350M：350~400MHz
Dimensions(H×W×D) mm	44483370mm

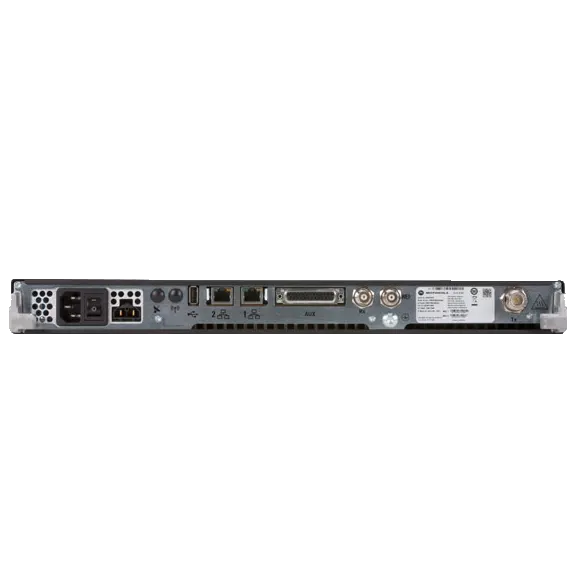

Connection Capability	Tx（N-type connector）；Rx（BNC female connector）；USB A-type socket; 2x Ethernet
Maximum current consumption	0.8A（standby）；11A（launch）；2A（receive）
Digital Vocoder Type	AMBE+2™
Digital Standards	DMR
Weight	8.6kg

Environmental

Humidity	95% relative humidity, 50 ° C (122 ° F) without condensation
Working temperature range	-30°C~60°C

* The supply situation depends on the laws and regulations of each country. All displayed specifications are guaranteed unless otherwise specified.
