Hytera HP502
Professional DMR Portable Two-way Radio
Hytera HP502 features a user-friendly dual-knob design for enhanced convenience; a high-performance speaker and built-in AI intelligent noise reduction algorithm ensure clearer and more distinct calls; it supports both Type-C and desktop charging, allowing for charging anytime, anywhere; industry-leading sensitivity and power-saving technologies, along with an IP67 protection rating, provide users with longer-range, longer-lasting, and more reliable communication.
InquiryHighlights of Hytera HP502

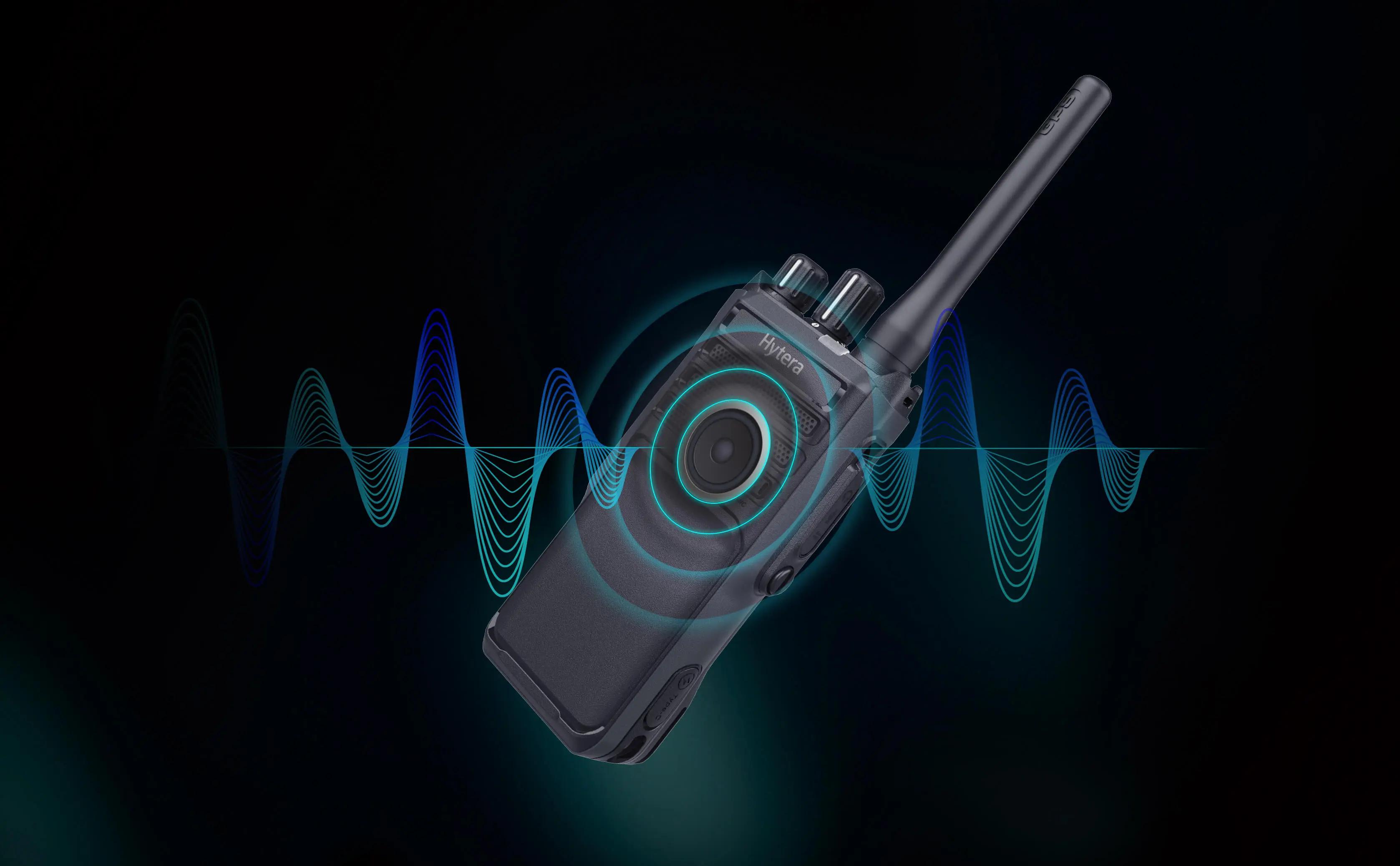

Clear and loud voice
Using a high-powered speaker, it ensures clear hearing even in noisy environments. It also employs AI intelligent noise cancellation technology to filter background noise (such as road horns), accurately extracting human voices from the noise, and effectively eliminating close-range feedback and breathing sounds when speaking close to the microphone, thus allowing the other party to hear a clear and bright voice.

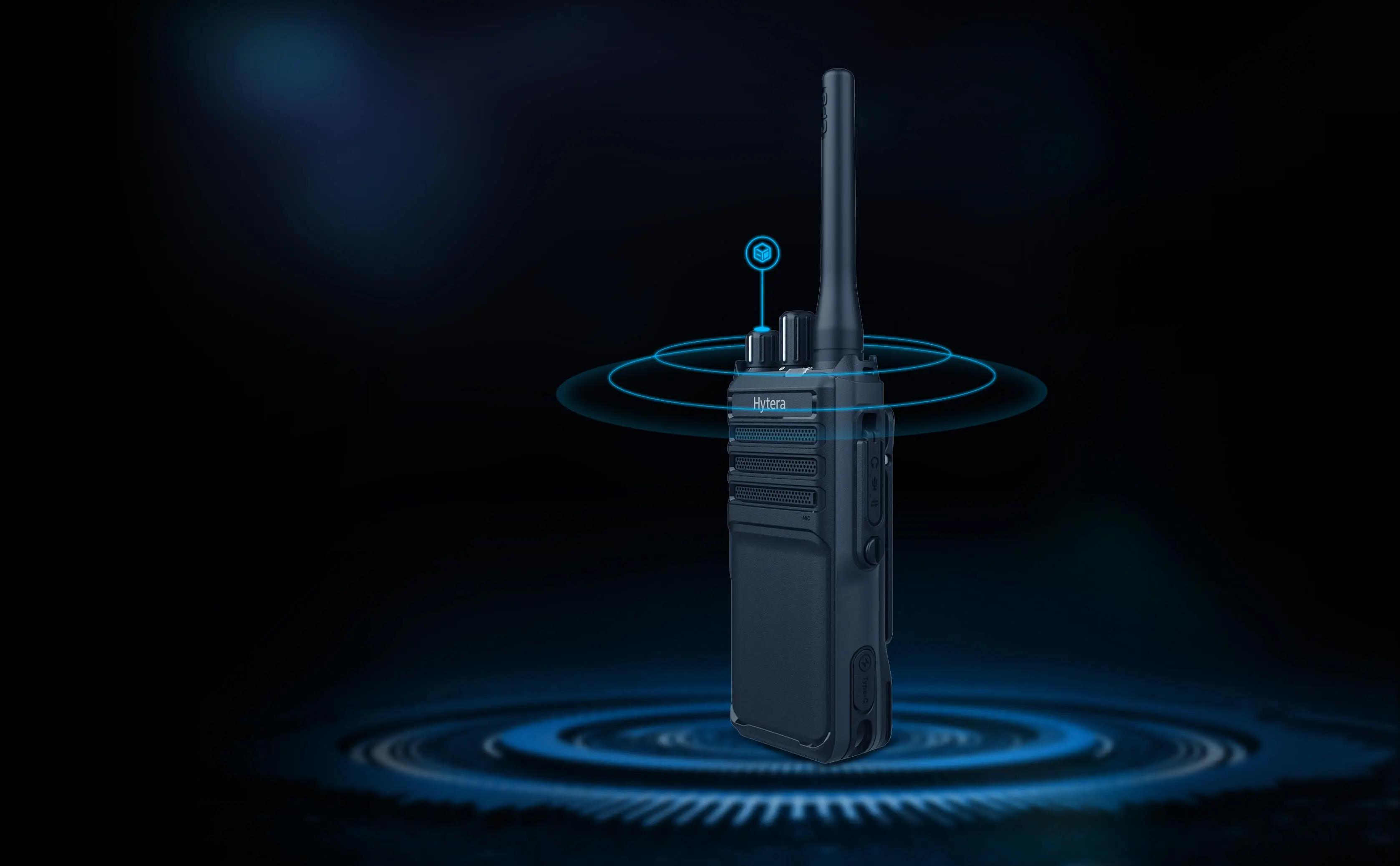

Ultra-long communication distance
Thanks to its industry-leading sensitivity of 0.18μV (-122dBm), the improved sensitivity ensures the reception of critical information in a wider area with weaker signals under the same conditions, thereby enabling longer communication distances and ensuring organizational efficiency and personal safety for users.

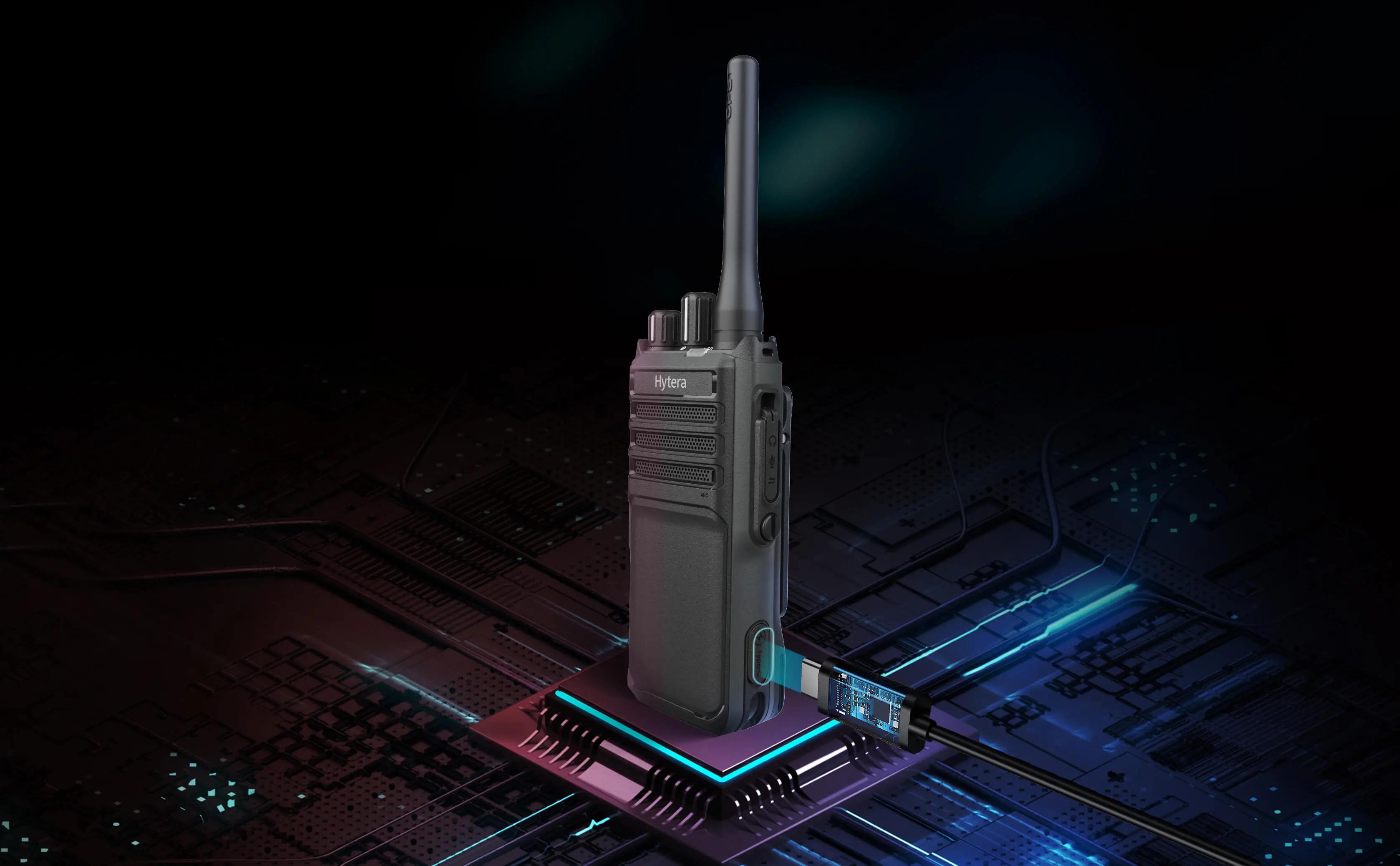

Type-C is more convenient to use
Supporting Type-C interface charging, users can use power banks, car chargers, etc. for mobile charging anytime, anywhere, ensuring network operation. Users can also use a Type-C data cable for frequency programming and upgrades, greatly improving the convenience of using and managing the walkie-talkie.
Simple and easy to use
The product features a dual-knob design: one for power on/off and volume control, and the other for channel switching, making operation simple and efficient. The enlarged LED indicator provides clear status visibility whether handheld, worn on the shoulder, or attached to the waist. The snap-on back clip allows for tool-free installation and removal.

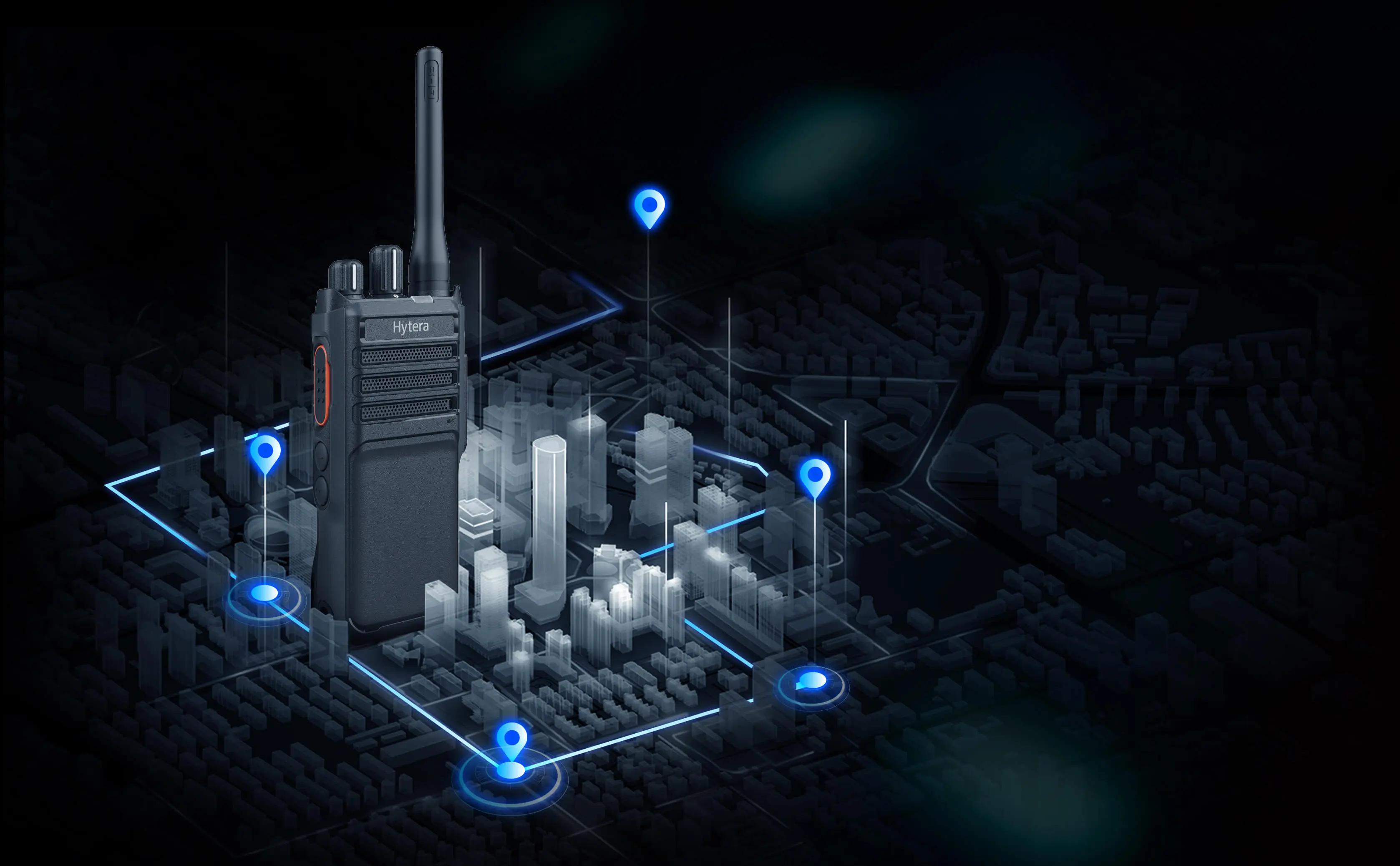

More accurate positioning
Optional GPS and BeiDou positioning systems are available, allowing the back-end control center to view staff location information. For example, in the event of an accident, an emergency alarm can be triggered to notify the back-end, which can then quickly locate the staff member using the location information for timely support and assistance.
Sturdy and durable
With an IP67 dust and water resistance rating, it is designed and manufactured in strict accordance with GJB150A-2009 and MIL-STD-810G standards. The outer shell is made of wear-resistant and heat-resistant PC protective material, and the back features a striped textured anti-slip design. It can withstand drops of up to 1.5 meters from multiple angles and can be used in various harsh environments.
Specifications of Hytera HP502
General
Environmental
General
| Frequency Range | UHF: 400-470 MHz; 350-400 MHz; VHF: 136-174 MHz |
| Channel Capacity | 256 |
| Zone Capacity | 16 |
| Operating Voltage | 7.4 V(rated) |
| Battery | 1500 mAh |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | 15 h (GNSS OFF); 13 h (GNSS ON) |
| Dimensions(H×W×D) mm | 119 mm x 55 mm x 30.5 mm |
| Weight | 265 g |

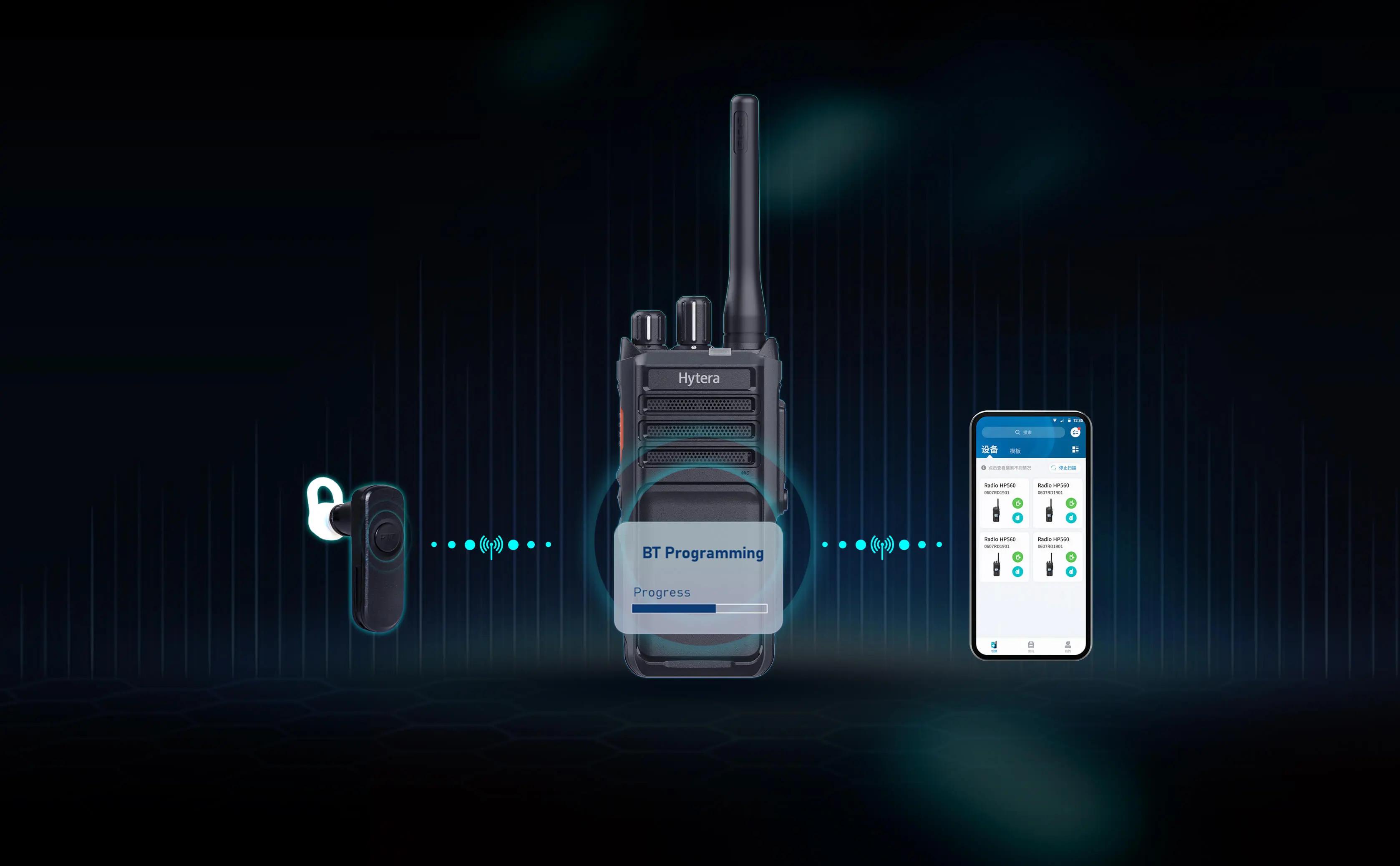

| BT | BT5.2 |
Environmental
| Operating Temperature | -30℃* ~ +60℃(Radio only - Battery -20 ℃) |
| Storage Temperature | -40℃ ~ +85℃ |
| Dust & Water Protection | IEC60529-IP68 |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
